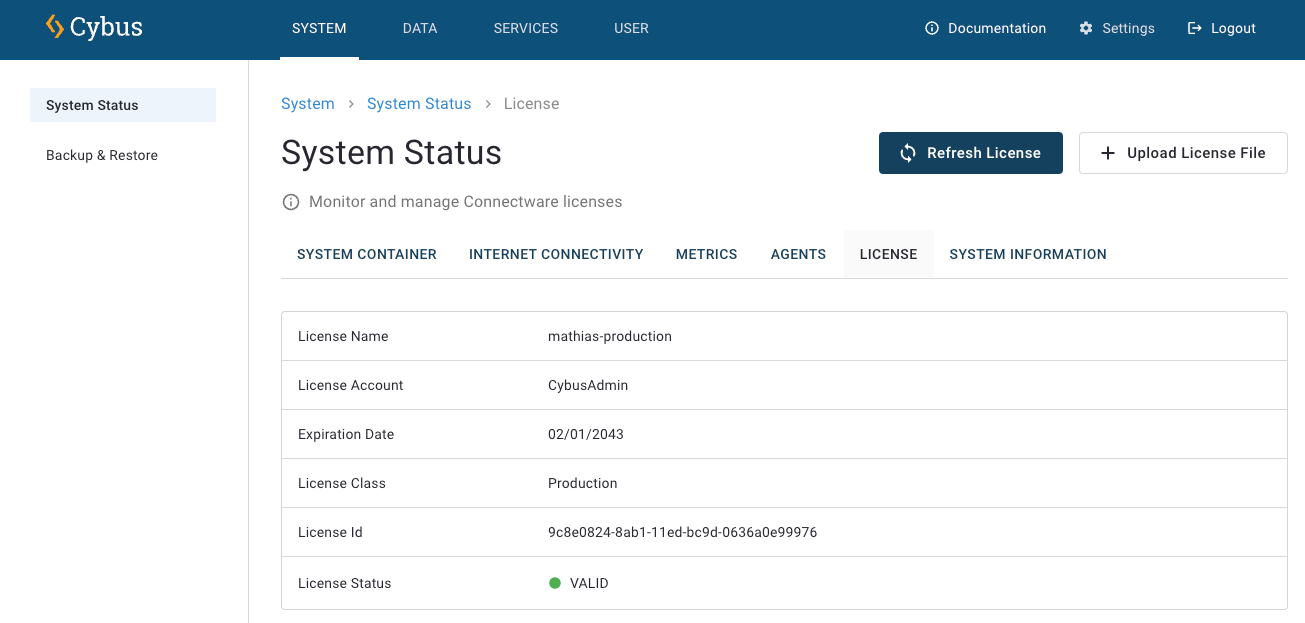

To see the , click System on the navigation panel and click License.

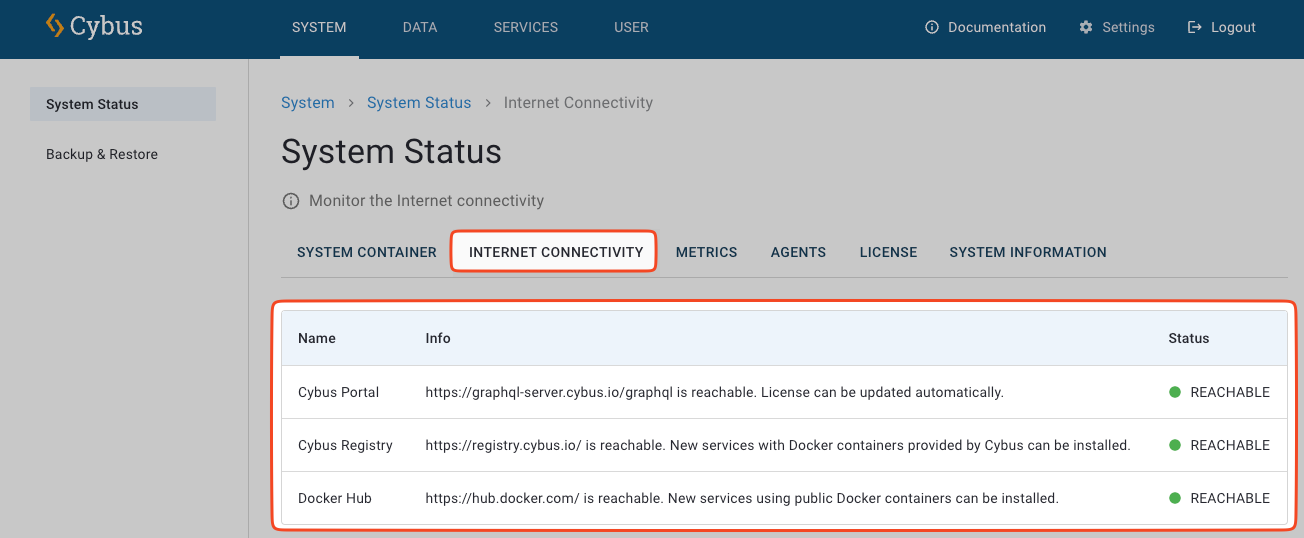

Find the connectivity status to the Internet server addresses that are needed for service installation under the title Internet Connectivity. As Connectware is designed to run with or without Internet connectivity, this section only informs about the current connectivity status.

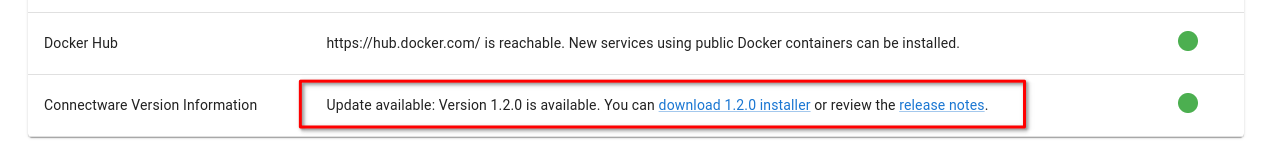

Connectware Version Information: If this connectivity is available, information about the latest available Connectware version will be displayed here. If a newer version is available, direct links to download the installer and the release notes will be shown here (see example below), otherwise the text will just confirm that the local version is the newest version. If this connectivity is not available, no online check for updates is performed.

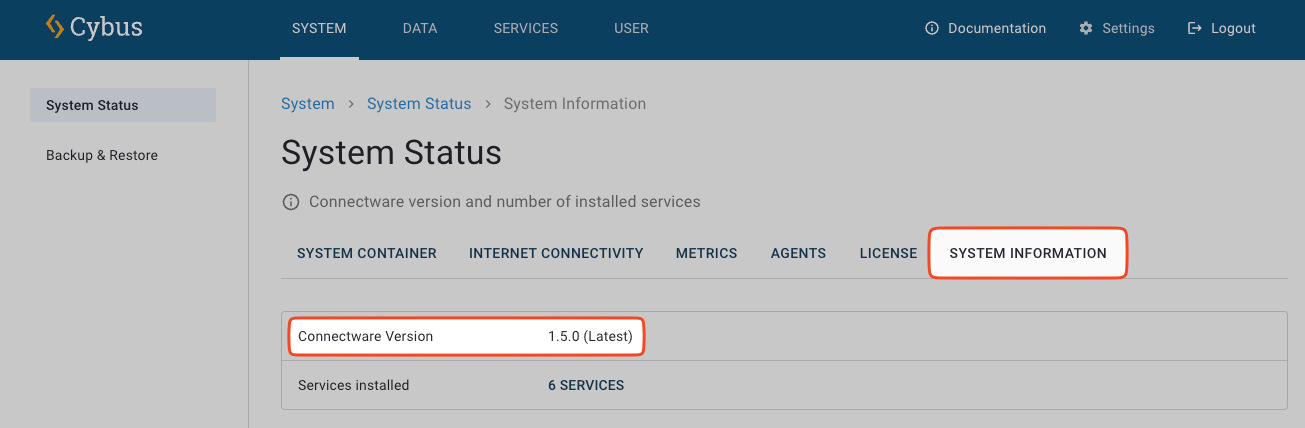

To see the Connectware version and the installed , click System on the navigation panel and click System Information.
Connectivity to these addresses is needed when that use additional . Other services that do not use Docker containers are not concerned at all and can always be installed and enabled, though. To explain this in detail:
Cybus Portal: If the DNS name of the Cybus Portal backend (graphql-server.cybus.io) is reachable, the can be performed online and automatically. If this address is not reachable, license updates must be performed manually by uploading a new license file. This is needed if there have been any changes in the license.
Cybus Registry: If this address is reachable, new services with Docker containers provided by Cybus can be installed and . If the address is not reachable, services using Docker containers provided by Cybus can only be enabled if the Docker images have been pulled to the local system beforehand, such as during a previous enabling with available connectivity. Installed services that have been enabled at least once can always be continued to be used.
Docker Hub: If this address is reachable, third-party services using public Docker images from Dockerhub can be installed and . Connectivity to Dockerhub is not required for running Connectware, and it is also not needed for installing any service provided by Cybus.
