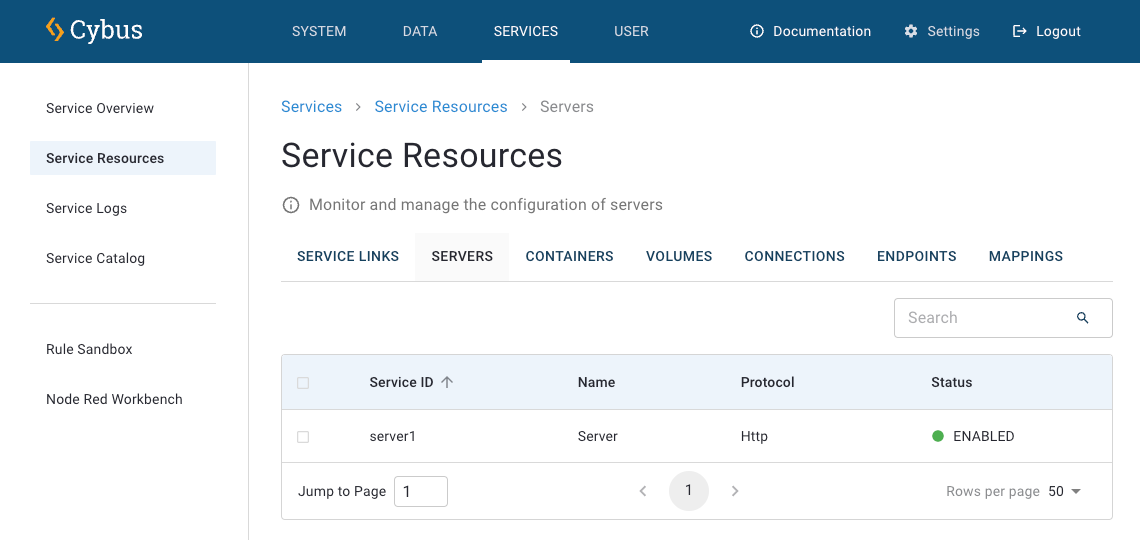

The Servers view shows an overview of all active and inactive servers. A server allows clients to access the data. Connectware already includes a MQTT broker which makes all data available in the internal MQTT API. Additional server resources can offer more choices to access the data, such as through OPC UA or RESTful interaction.
The data in the server resource is organized in terms of node resources, which are defining the available data and its structure.
See also: Cybus::Server resource
To open the Servers view, click Services on the navigation panel and click Service Resources. In the Service Resources view, click the Servers tab.
To open the Details View of a server, click the server.
The Servers Details view contains the following tabs:

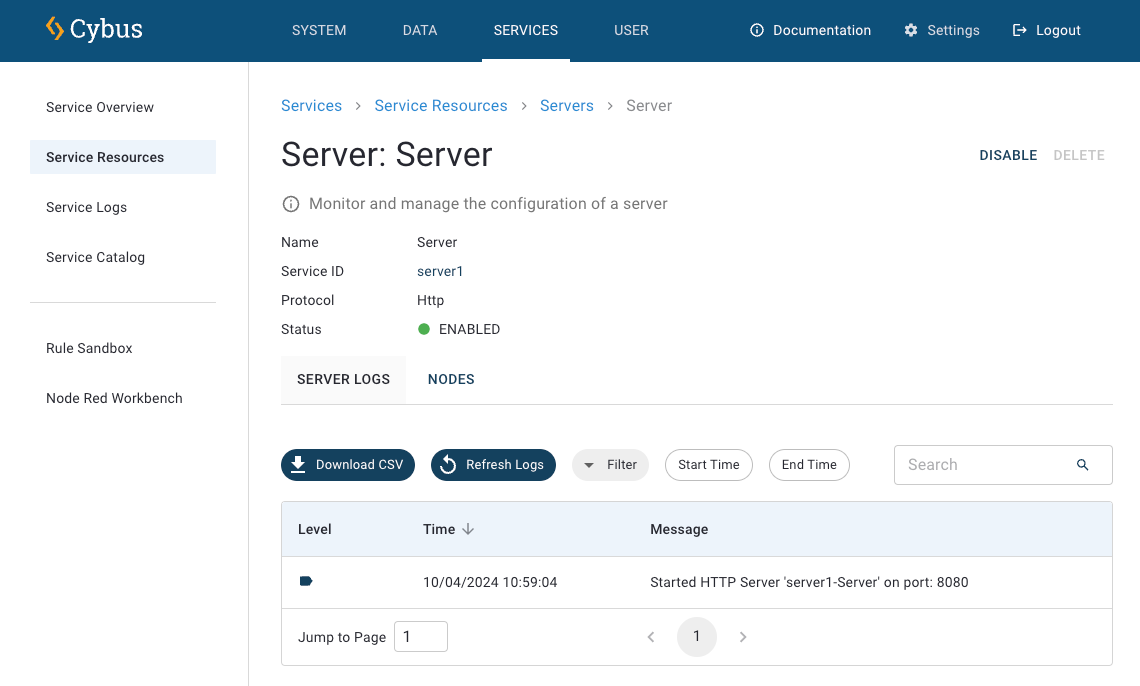

Server Logs
Shows the server logs of the selected server.

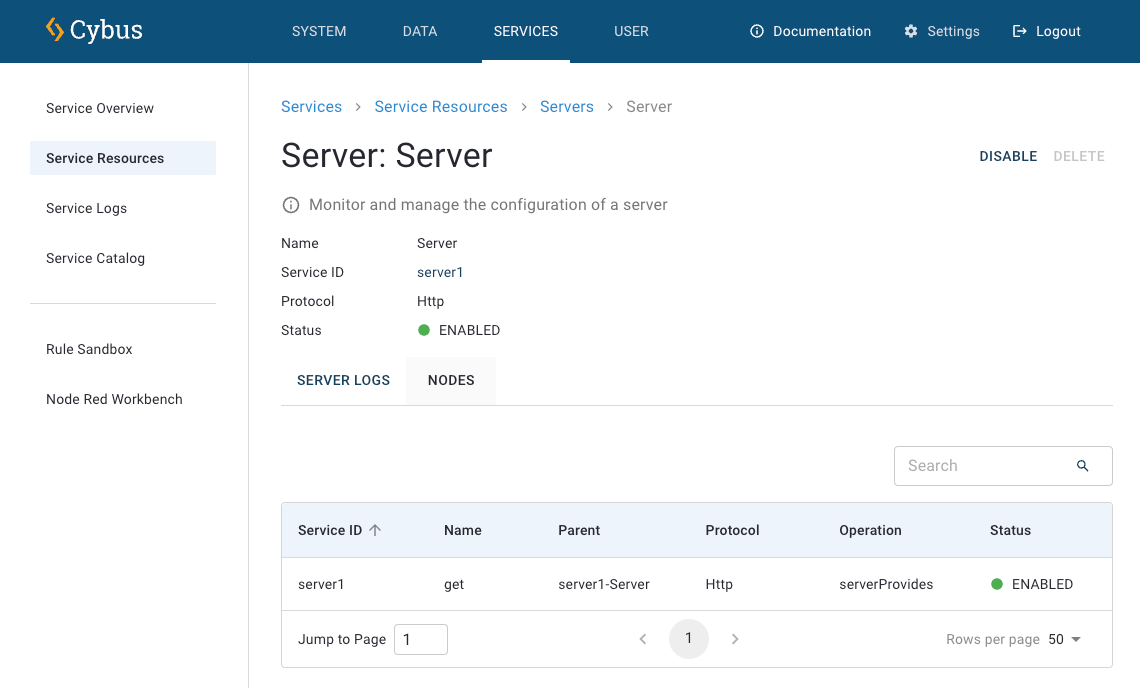

Nodes
Shows the associated nodes of the selected server.
