Example 1 - Node with Transaction Mode (HTTP)

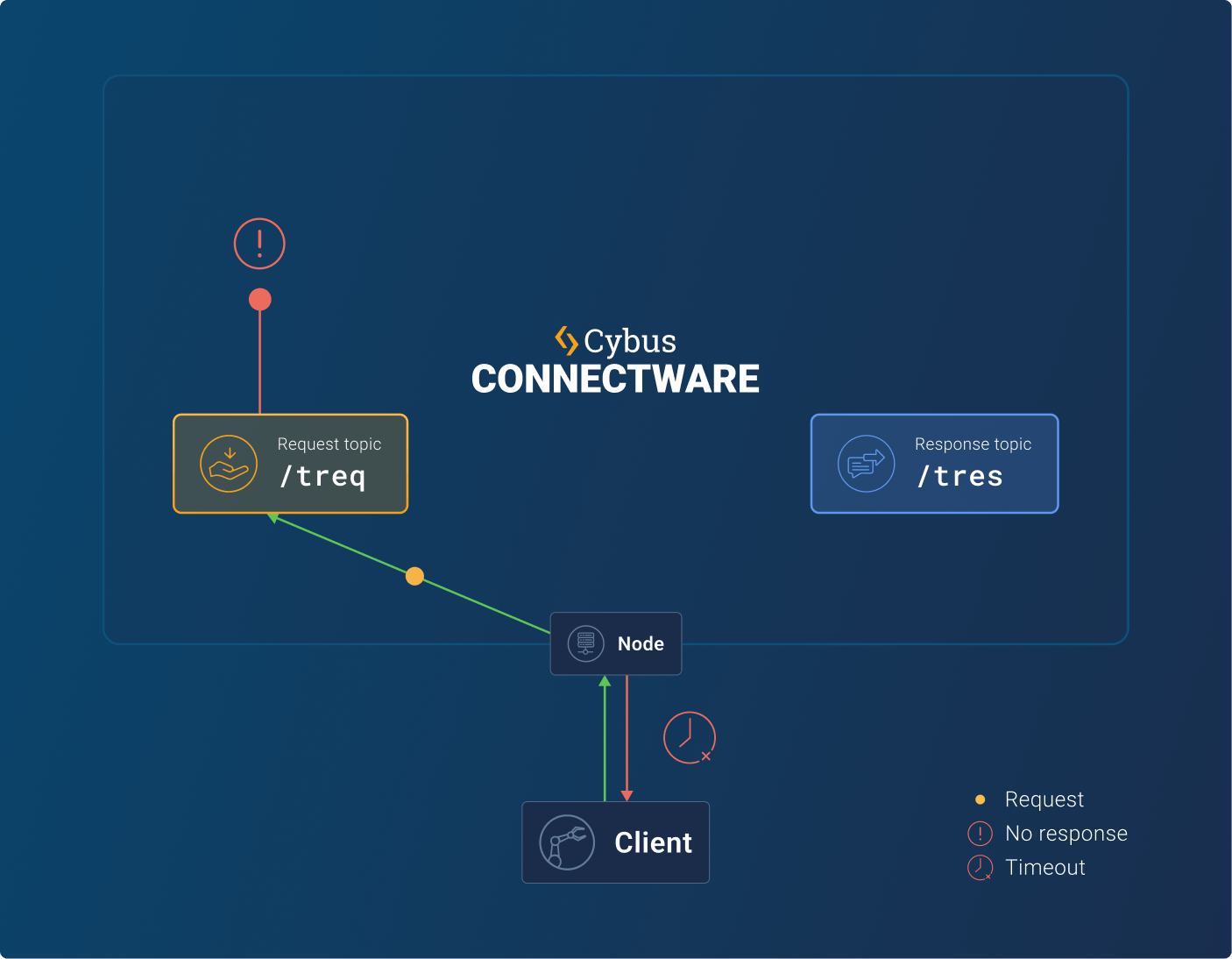

This example demonstrates a basic FlowSync configuration using an HTTP node. The service is configured to use transaction mode. Since no MQTT messages are published to the /tres topic in this setup, requests will time out after the default timeout period.

• To call the HttpNode in the example below, run the following command:

curl --insecure \
--location 'https://127.0.0.1/data/flowsync/example1' \
--header 'Authorization: Bearer <replace with your token>'

For more information on the FlowSync configuration properties, see Cybus:Node.

392B

flowsync-example-1-node-with-transaction-mode-http.yaml

Open

flowsync-example-1-node-with-transaction-mode-http.yaml

description: FlowSync - Example 1

metadata:
    name: example 1
    version: 1.0.0

resources:
    testServer:
        type: Cybus::Server::Http
        properties:
            basePath: /FlowSync

    exampleNode:
        type: Cybus::Node::Http
        properties:
            parent: !ref testServer
            method: GET
            route: /example1
            operation: transaction
