# Connections

A *connection* provides connectivity to some other things such as a device over some protocol (see also [Industry Protocol Details](https://docs.cybus.io/1-7-3/documentation/industry-protocol-details)).

The *Connections* view shows an overview of all active and inactive protocol connections.

See also: [Cybus::Connection resource](https://docs.cybus.io/1-7-3/documentation/services/structure-of-commissioning-files/resources/cybus-connection)

## Overview

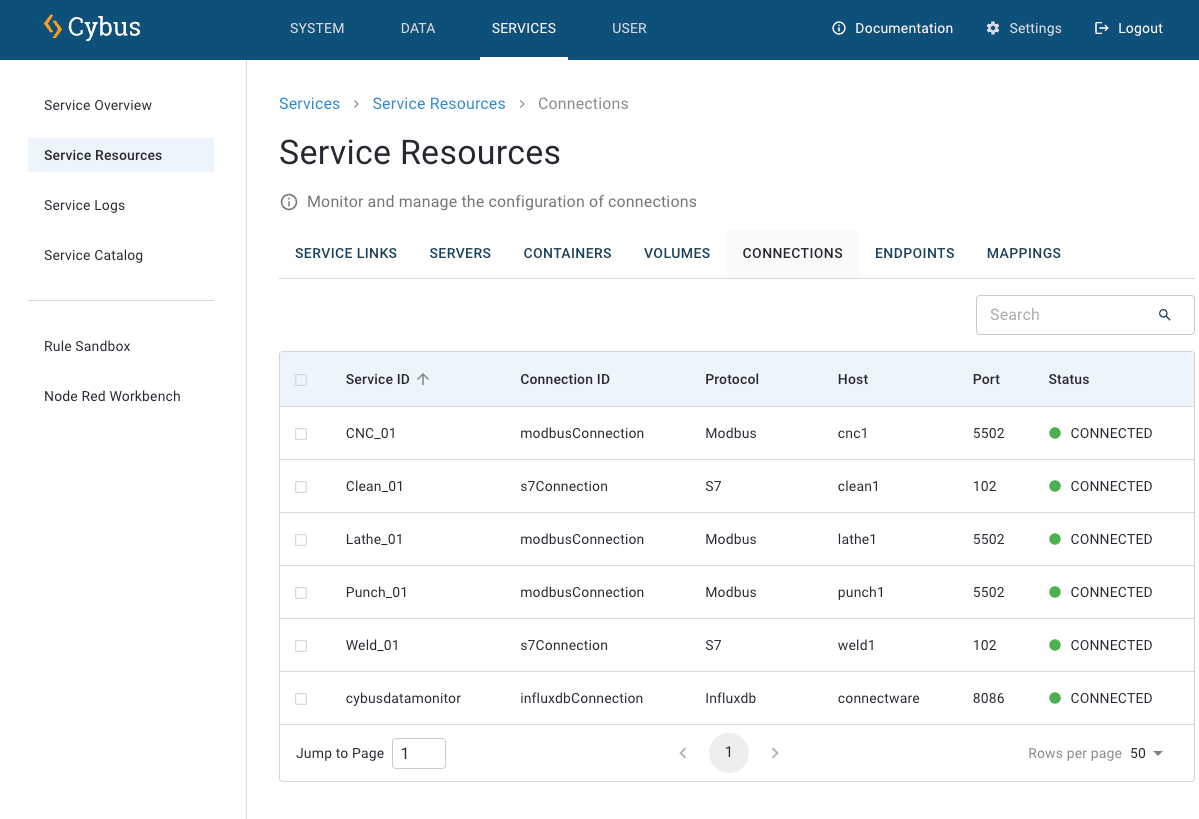

<figure><img src="https://950196595-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwTih5dM9HKbgRlnp5wVj%2Fuploads%2Fgit-blob-a55777b46f27fa8ea29be17d61565c10f5349905%2Fconnections_overview.png?alt=media" alt=""><figcaption><p>Connections Overview</p></figcaption></figure>

By clicking on one of the listed connection you get redirected to the [Details View](#details-view) of the selected connection.

## Details View

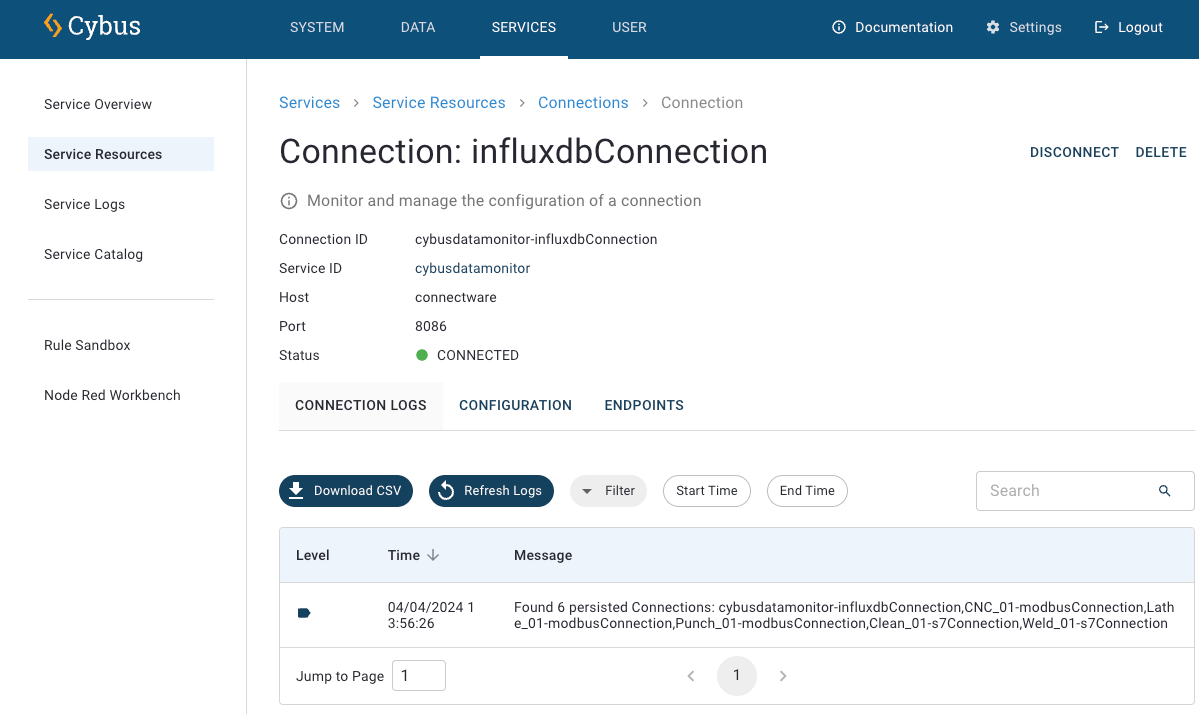

<figure><img src="https://950196595-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwTih5dM9HKbgRlnp5wVj%2Fuploads%2Fgit-blob-ae81cbdc7f7cda0fcabb465597958d62bdd31ff4%2Fconnections_details.png?alt=media" alt=""><figcaption><p>Connections Details View</p></figcaption></figure>

The connection has resources itself. In this case there is only Endpoints.

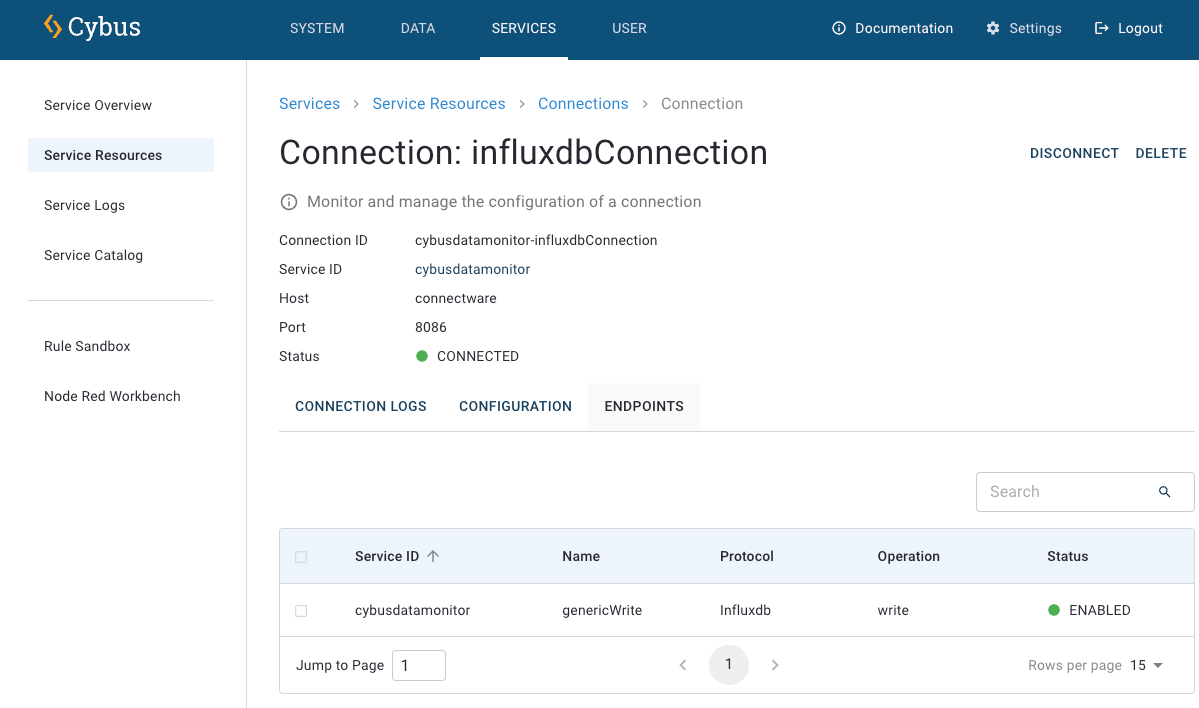

<figure><img src="https://950196595-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FwTih5dM9HKbgRlnp5wVj%2Fuploads%2Fgit-blob-c4fa0b9070ec4a030019b54aea50b51f803ed485%2Fconnections_details_open.png?alt=media" alt=""><figcaption><p>Connections Details View with open resources</p></figcaption></figure>
