Deviation

When you enable a service, all its resources should transition from disabled to enabled, or to any other target state specified in the commissioning file. This file describes the resources and their required target states to ensure that the service functions properly.

However, certain conditions may prevent resources from achieving the desired target state (e.g. a broken network cable). Such instances are called a deviation and the affected service is considered deviated.

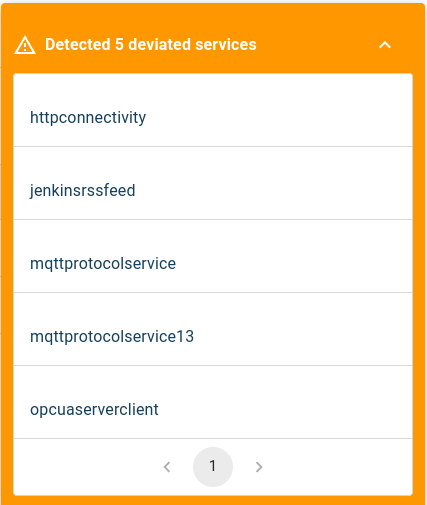

A pop up message notifies you of deviated services. To see the list of deviated services, click the arrow down button.

It is also shown in the service overview page, in the service details view, and in the list of the respective resource. Clicking on the deviation warning messages will show a list of resources whose actual state is different from the expected state:

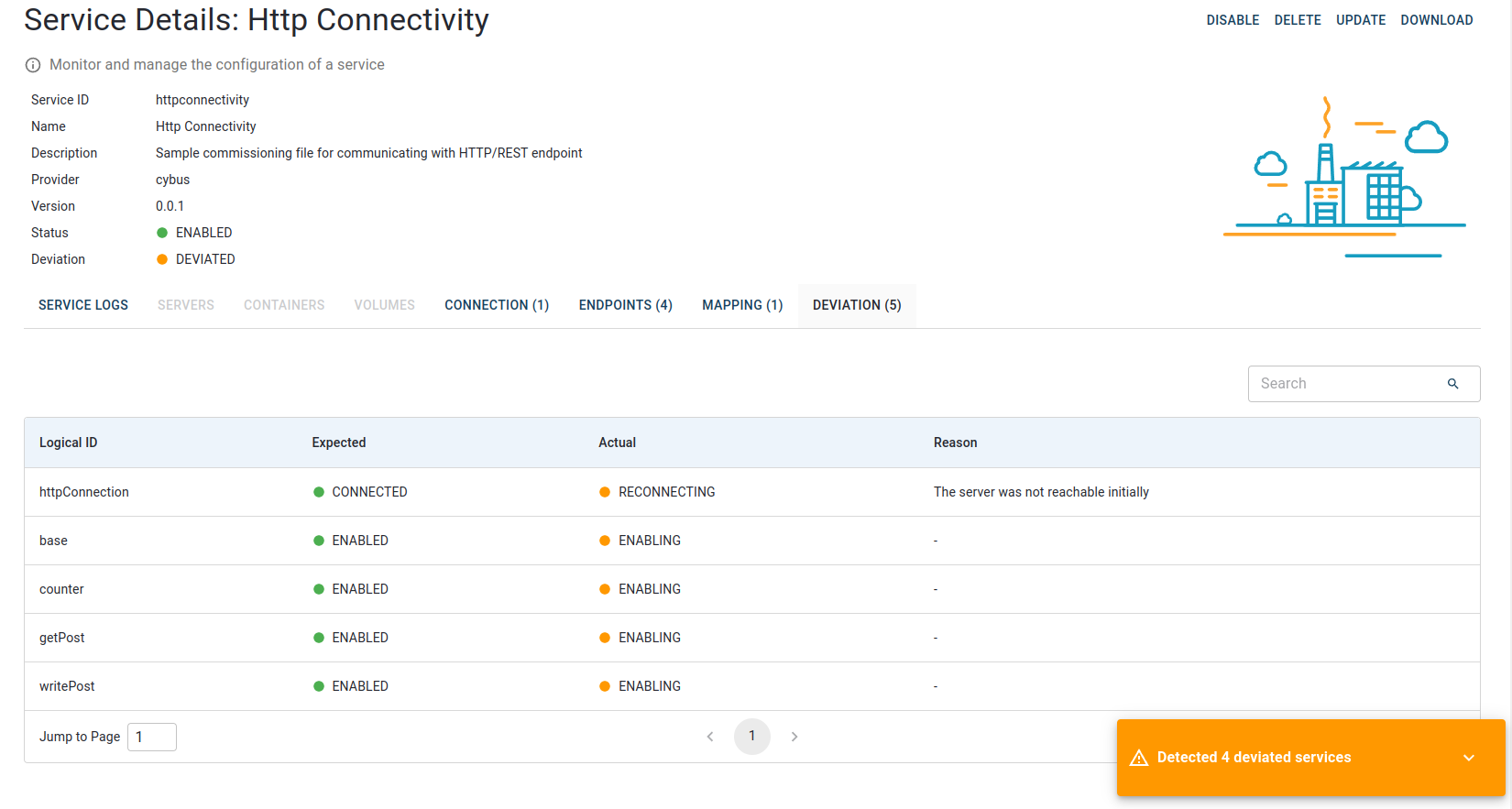

To see which resources of a service are deviated, click a service name in the list. This opens the Deviations tab for the service to display the deviated resources. On the Deviations tab, you can see expected status and the actual status of each deviated resource.
