Metrics

  1. On the navigation panel, click System.

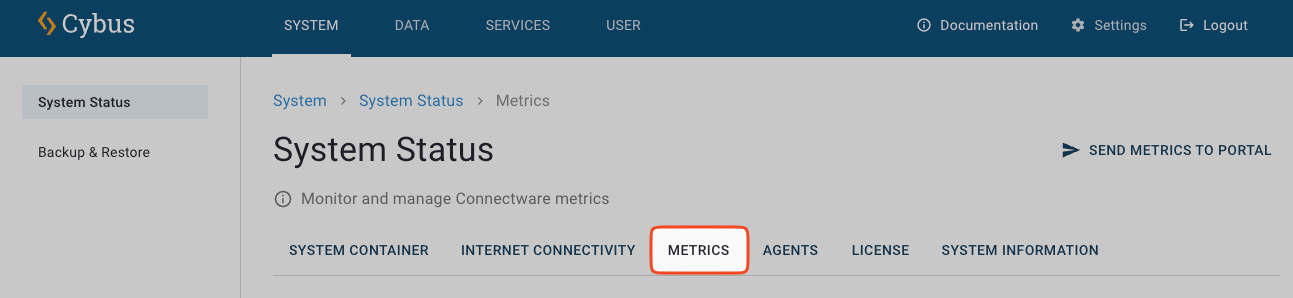

  1. Click Metrics.

  1. The Metrics tabs shows a number of values collected throughout operational times.

Overview

The metrics view provides two tables that present data.

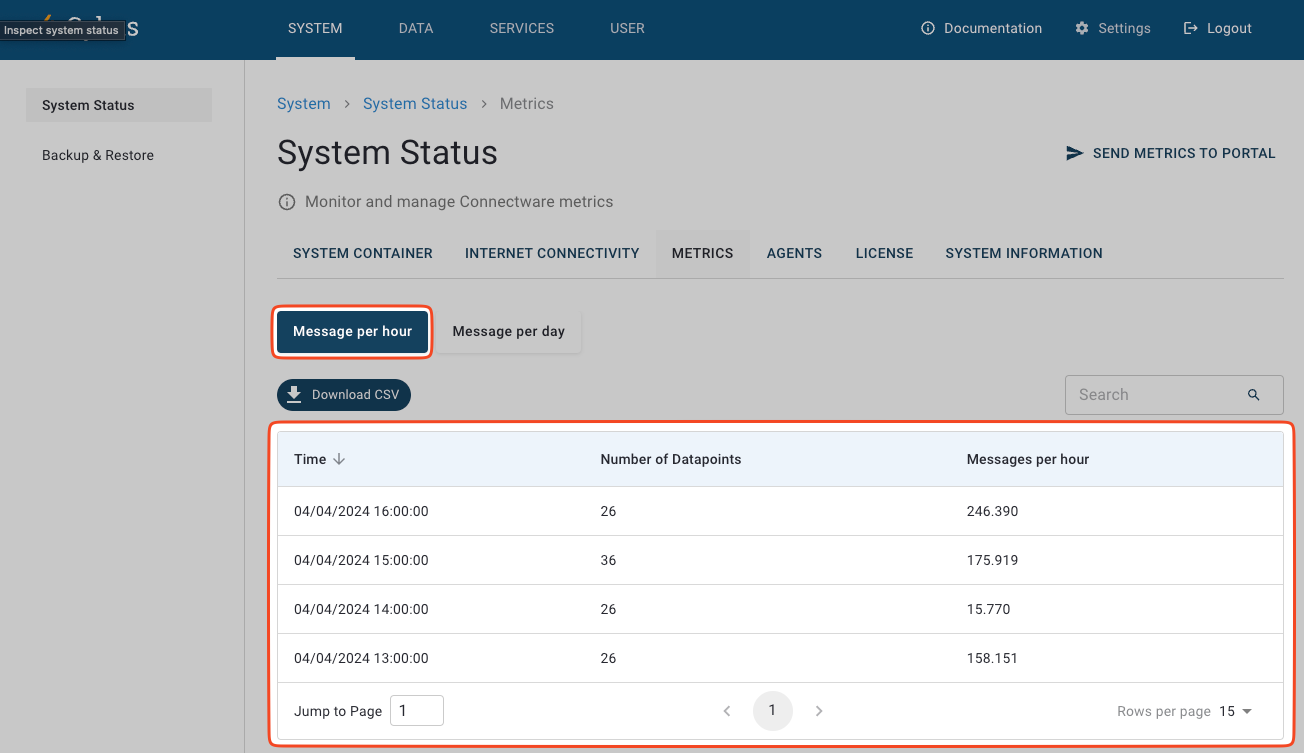

Hourly Collected Metrics

This table consists of the following columns:

  • Date/Time - Date and Time of the snapshot

  • Number of Datapoints - Number of connected Endpoints at the time instant of the snapshot

  • Messages per hour - Number of messages transferred by the broker during the hour between the previous snapshot to the current one

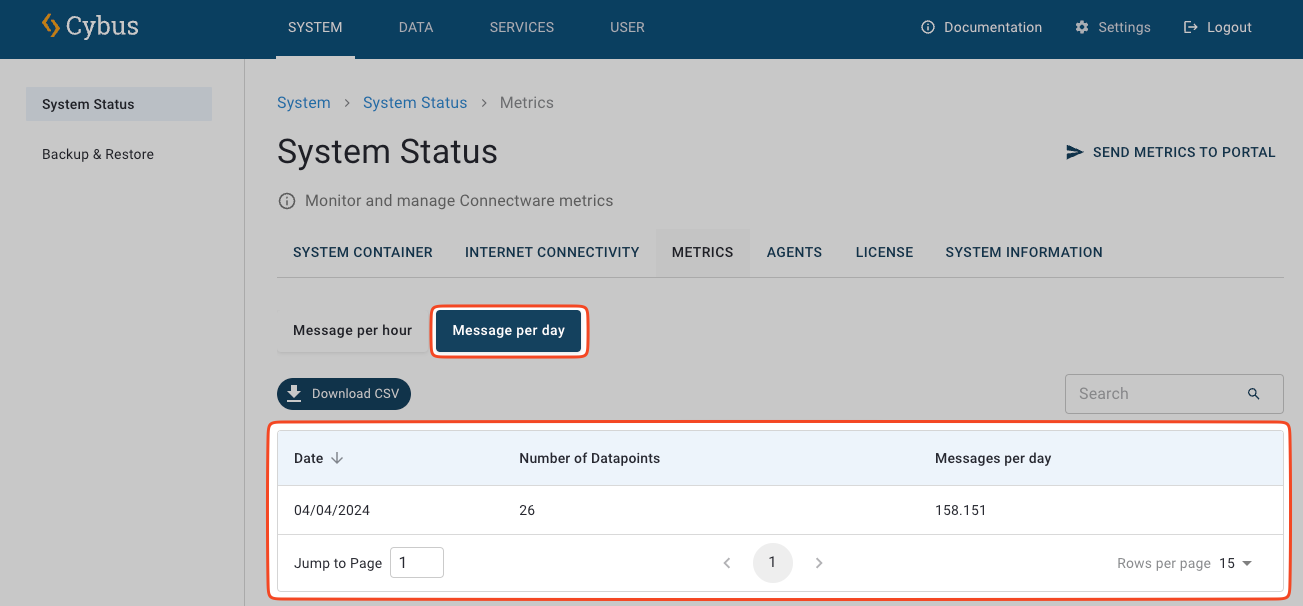

Daily Collected Metrics

This table consists of the following columns:

  • Date - Date of commulated metrics

  • Number of Datapoints - Number of connected Endpoints at the time instant of the daily snapshot

  • Messages per day - Number of messages transferred by the broker during the day

The collected metrics are computed in two ways.

  1. The Number of Datapoints are a snapshot at the end of the day

  2. The Messages per day is the sum of all messages per hour for this specific date
