Enabling Services

PreviousInstalling ServicesNextUpdating Services

Last updated 6 months ago

Was this helpful?

After uploading a service commissioning file, you must enable each configured service in the Admin UI.

  1. In the Services view, click the service that you want to enable to open its Service Details view.

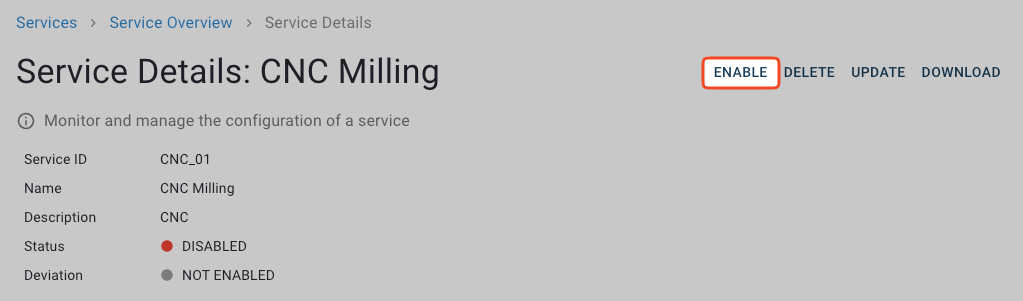

  2. In the upper right corner, click Enable.

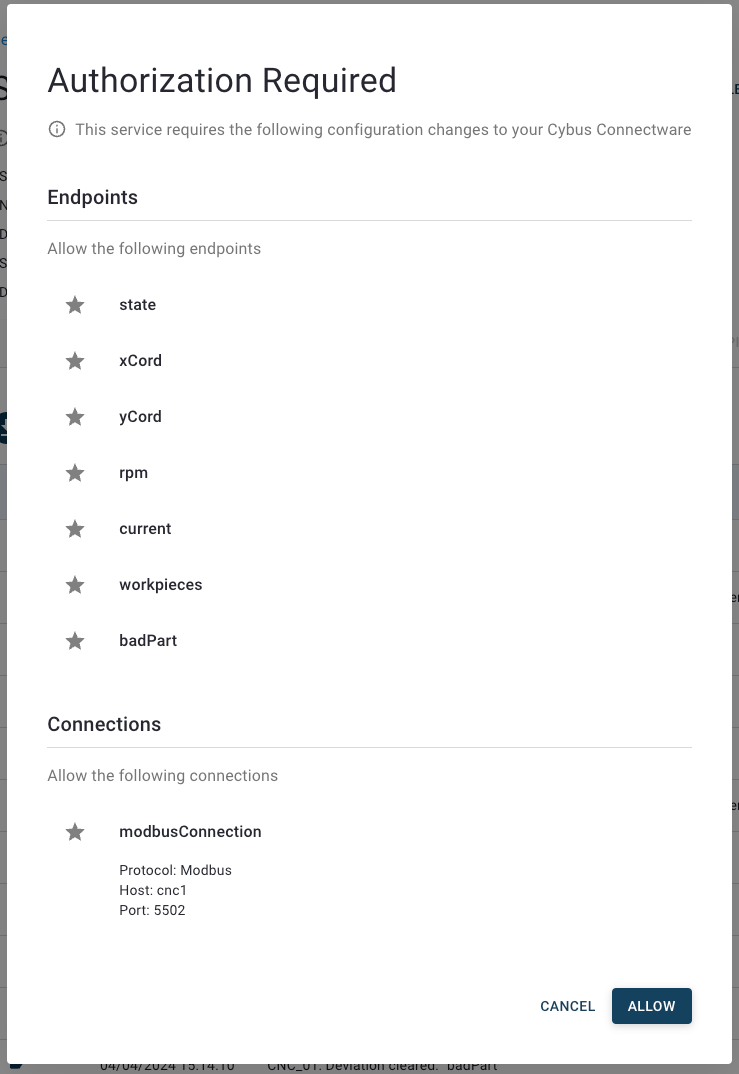

  1. The Authorization Required dialog displays the resources that the service must access. Review the requirements, then click Allow.

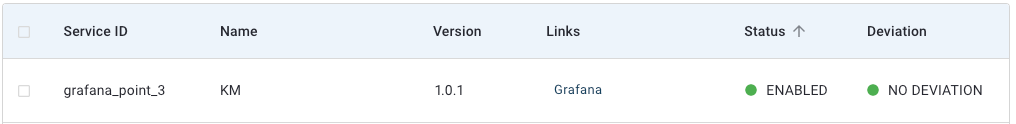

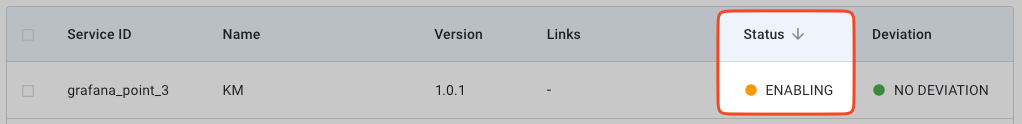

The service shows Enabling at the status while creating all resources specified in the service commissioning file. Once complete, the status changes to Enabled.

Select the Live Data tab to get insights into topic activity, message content, and associated resources of your service. For more information, see .

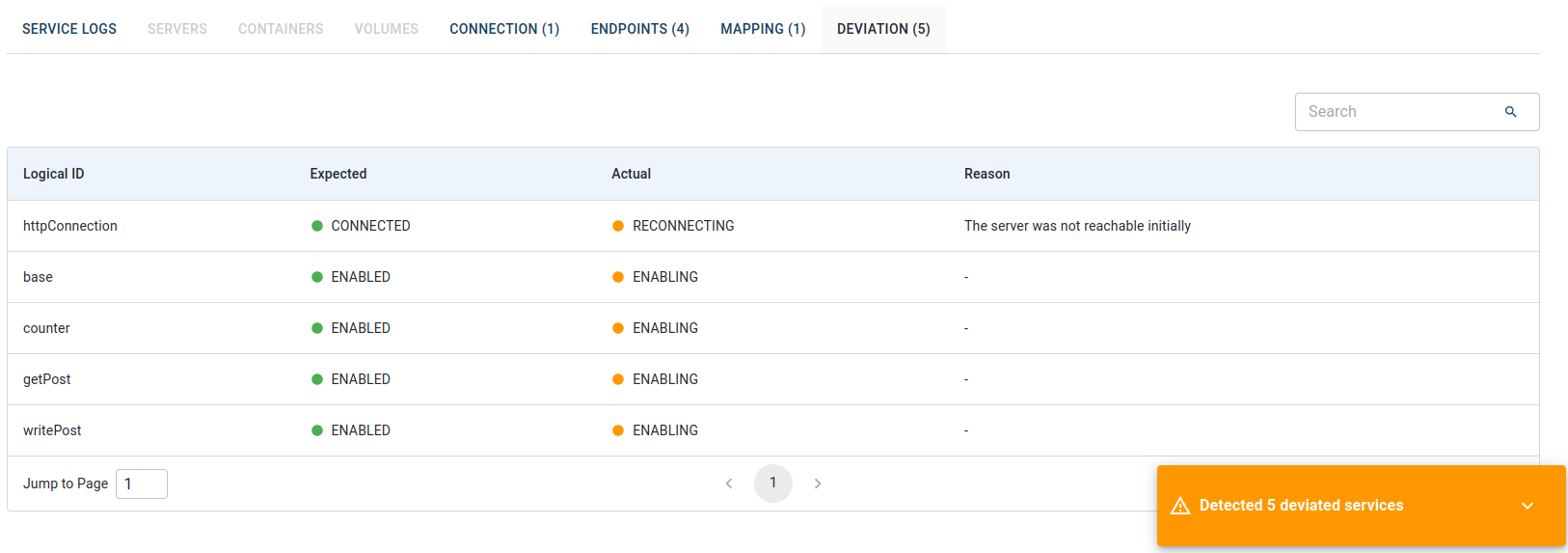

If a service does not work as expected, it may have a deviation. Check the tab to see all deviated services.

Live Data
Deviation
