Updating Services

PreviousEnabling ServicesNextDisabling Services

Last updated 6 months ago

Was this helpful?

You can modify a service by either uploading an updated commissioning file or reconfiguring its parameters in the Admin UI.

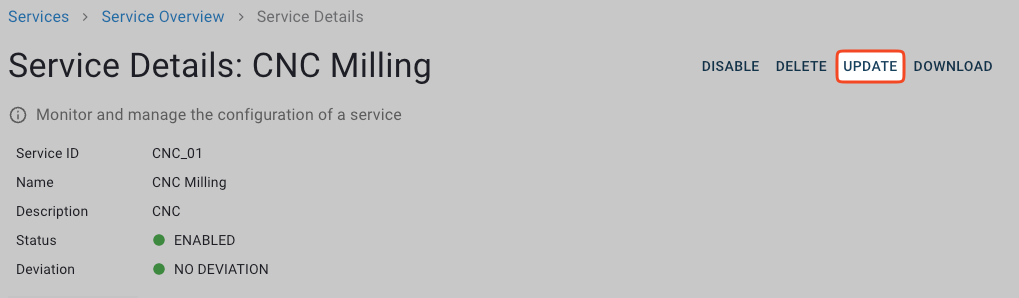

  1. In the Service Details view of the service that you want to update, click Update.

  1. In the Update or Reconfigure Service dialog, do one of the following:

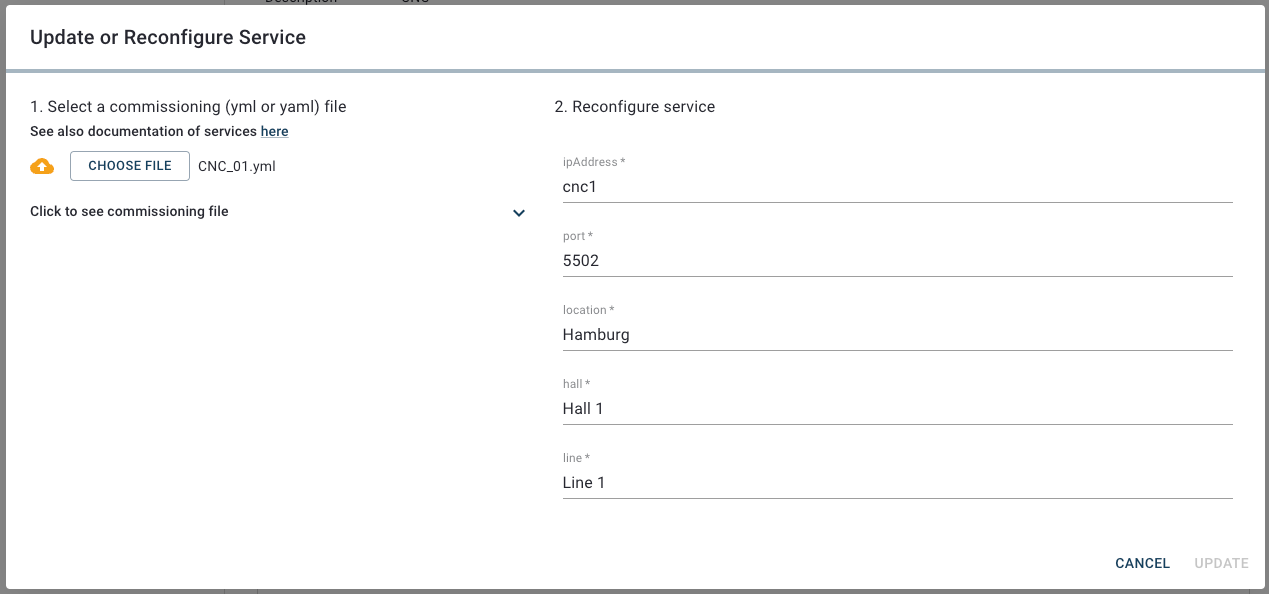

  • To install an updated service commissioning file, click Choose File. In the file browser, select the updated service commissioning file and click Open.

  • To update the service configuration in the Admin UI, you can edit the parameters in the Reconfigure service section. Depending on the service, default values might be provided for some parameters.

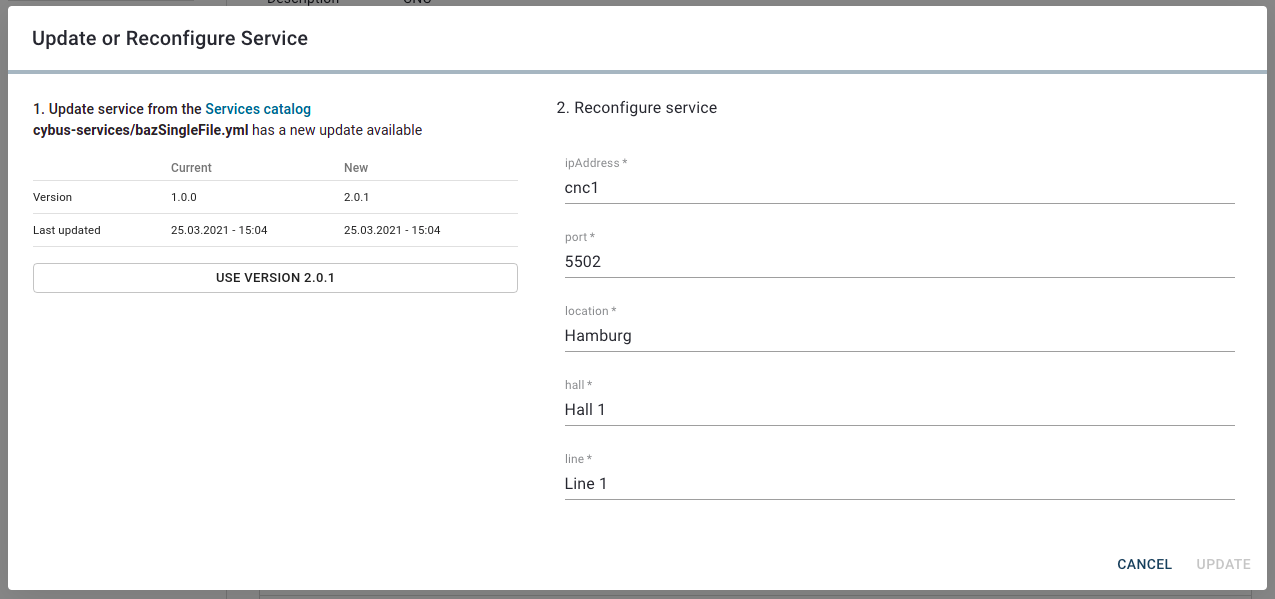

  • For updating a service that you have originally installed from the Services Catalog, the Update or Reconfigure Service window will display information about available versions. If a newer version exists and you want to upgrade, select the Use version X.Y.Z option, where X.Y.Z represents the latest version number.

  1. If the service contains configurable parameters, customized values for the parameters can be entered in the right part of the window.

  1. Click Update to apply the changes.

Result: The service status will temporarily change to Updating, then revert to its original state (Enabled or Disabled).
