# Endpoints View
Endpoints describes the address of a single data endpoint within a specific protocol.
See also: [Cybus::Endpoint resource](https://docs.cybus.io/2-0-6/documentation/services/service-commissioning-files/resources/cybus-endpoint)

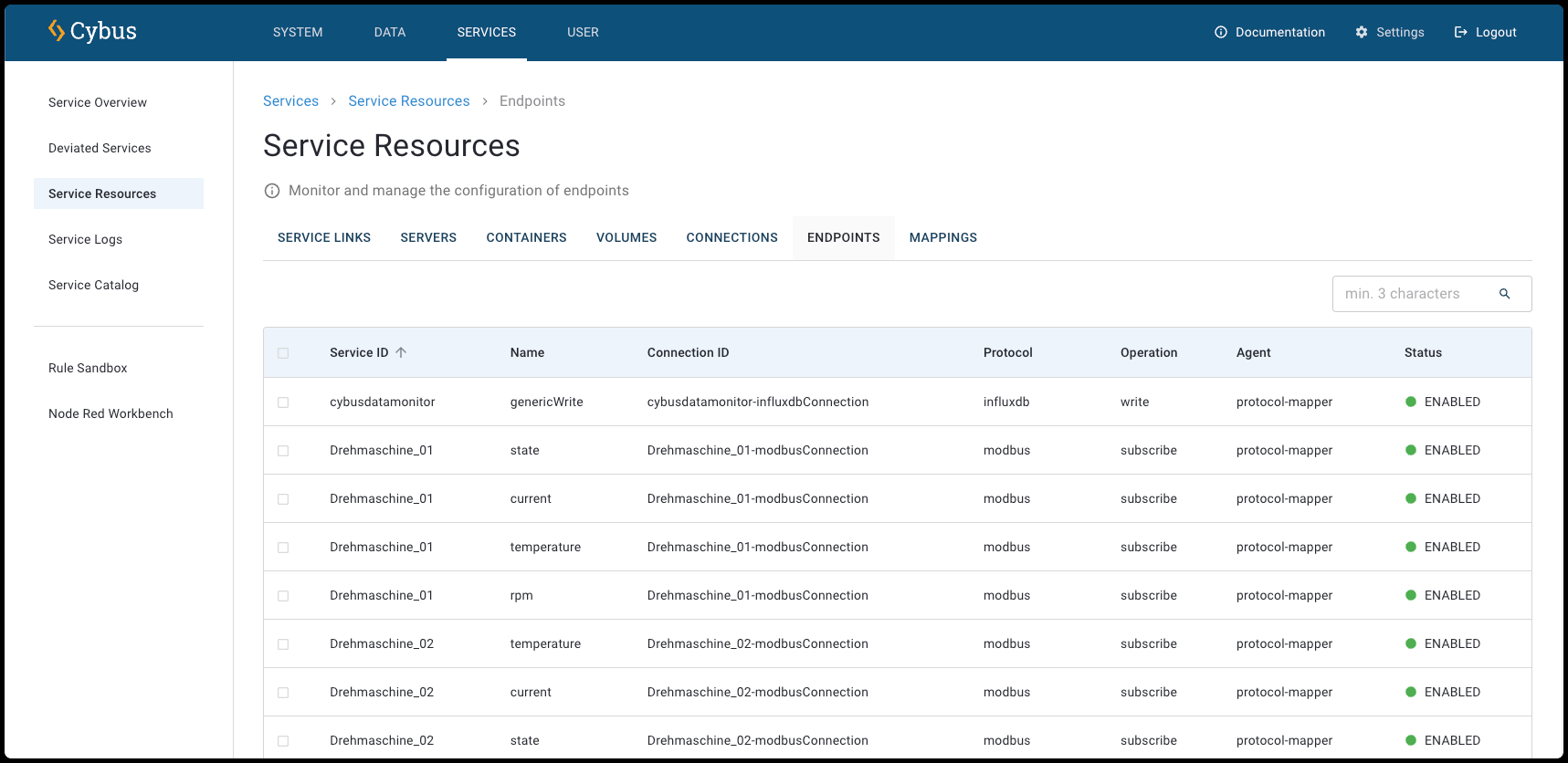

## Overview
Endpoints View
In the list, all endpoints are displayed with the following information:
**Service ID**
* The unique identifier of the service that contains this endpoint.
**Name**
* The name of the endpoint (e.g. current, rpm, temperature).
**Connection ID**
* The unique identifier assigned to this specific endpoint within the service.
**Protocol**
* The communication protocol used for the endpoint (e.g., Modbus, HTTPS, OPC UA).
**Operation**
* The operation type of the endpoint (e.g., subscribe or publish).
**Agent**
* The agent that is assigned to the endpoint.
**Status**
* The current state of the endpoint (e.g., enabled or disabled).

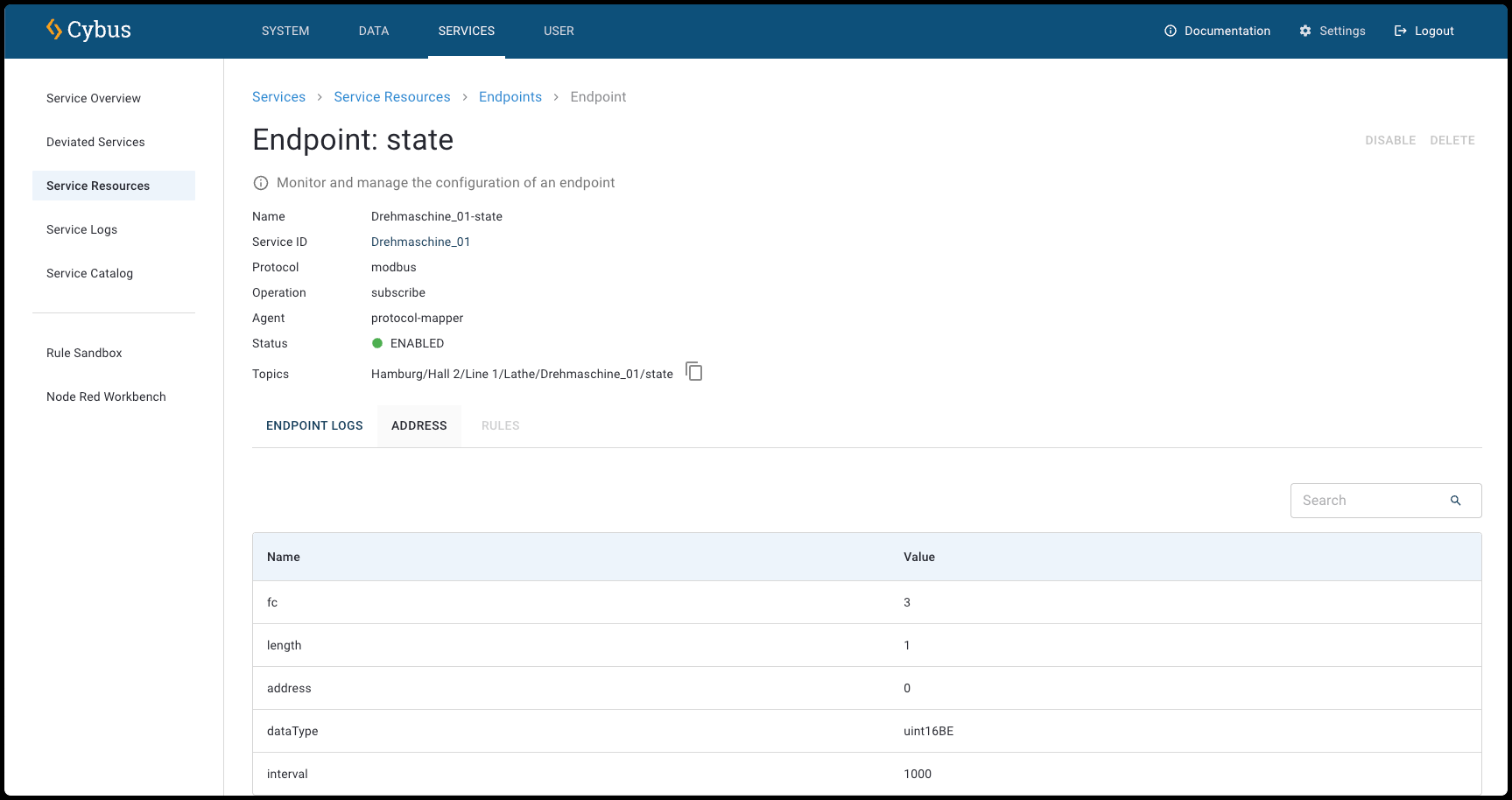

## Endpoint Details View
* To open the **Endpoint View** for a specific service, click **Services** > **Service Overview** and select a service. In the **Service Details View** of the selected service, click the **Endpoints** tab.
Endpoint Details View
At the top of the **Endpoint Details View**, the following information is displayed:
**Name**
* The name of the endpoint (e.g. current, rpm, temperature).
**Service ID**
* The unique identifier of the service that contains this endpoint.
**Protocol**
* The communication protocol used for the endpoint (e.g., Modbus, HTTPS, OPC UA).
**Operation**
* The operation type of the endpoint (e.g., subscribe or publish).
**Agent**
* The agent that is assigned to the endpoint.
**Status**
* The current state of the endpoint (e.g., enabled or disabled).
**Topics**
* The topic of the endpoint. You can monitor all topics in the Data Explorer.
## Resources of Endpoints
Each endpoint has resources itself.
* To open the resources of endpoints, click an endpoint in the **Endpoints View**.
### Endpoint Logs
You can view detailed log messages for the endpoints of the selected service in the **Endpoints Logs tab** of the **Endpoint Details View**.
**Download CSV**
* Export the visible log entries as a CSV file.
{% hint style="info" %}
The log entries in the CSV file are limited to the most recent 500 lines in the current view. To download the raw logs that contain the full logs, see [Logs of All Services](https://docs.cybus.io/2-0-6/documentation/services/service-logs/service-logs-of-all-services).
{% endhint %}
**Refresh Logs**
* Refresh the log messages to show the most recent entries.
**Filter**
* Use these filters to focus on specific service log message types based on your troubleshooting or monitoring needs. You can filter for **Debug**, **Error**, **Fatal**, **Info**, **Trace**, and **Warn** messages.
**Start Time/End Time**
* Select a specific start date/time and end date/time to define the period for which you want to view log messages.
**Search**
The search allows you to filter the list.
* Minimum search length is 3 characters.
* Search services by service ID or name.
* Search resources by name, ID, protocol, parent resource ID, agent name, or service ID.
* Search is case-insensitive.
**Level**
* The type of message. For example, info or warning.
**Time**
* Shows the exact date and time when each log message was generated.
**Message**
* Displays the message of the log (e.g., **lathe\_01: Enabled InfluxdbEndpoint**).

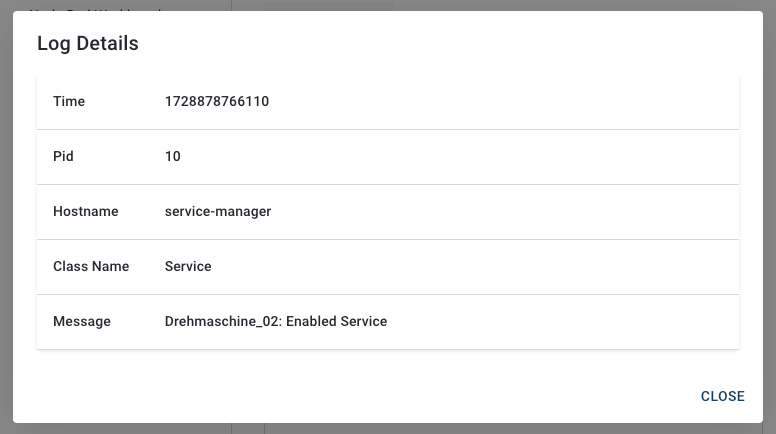

#### Log Details Dialog
The **Log Details dialog** provides in-depth information about specific log entries in the service logs.
* To open the **Log Details dialog**, click a log entry of a service.
When you select a log entry, this dialog displays the following fields:
**Time**
* The timestamp of the log entry in Unix milliseconds format (.e.g., **1728878765733**).
**Pid**
* The Process ID associated with the log entry.
**Hostname**
* The name of the host or service that generated the log (e.g., **protocol-mapper**).
**Class Name**
* The class or category of the log entry (e.g., **InfluxdbEndpoint**).
**Message**
* A detailed description of the logged event. Example: **lathe\_01: Enabled ModbusEndpoint**
### Address
The **Address** lists the address property specified for the endpoint in the service commissioning file.
**Name**
* The name of the address (e.g. length or interval).
**Value**
* The value of the address.
**Search**
* Find specific addresses by keyword.
### Rules
The **Rules tab** lists associated Rule Engine rules for the endpoint. The rules define how data should be processed between subscribing and publishing. For more information, see [Rule Engine](https://docs.cybus.io/2-0-6/documentation/services/rule-engine).
