Service Overview

Start in the Service Overview to install new services and drill down into the details of any running service.

The Service Overview allows you to upload, configure, and monitor services. The details of a service are described in a service commissioning file in the text-based YAML format, which includes metadata, parameters, connections, endpoints, mappings, and volumes.

You can click a service to open its Service Details view. This view allows you to gain deep insights into each service, facilitating thorough understanding and precise control of service operations.

• To open the Service Overview, click Services on the navigation panel.

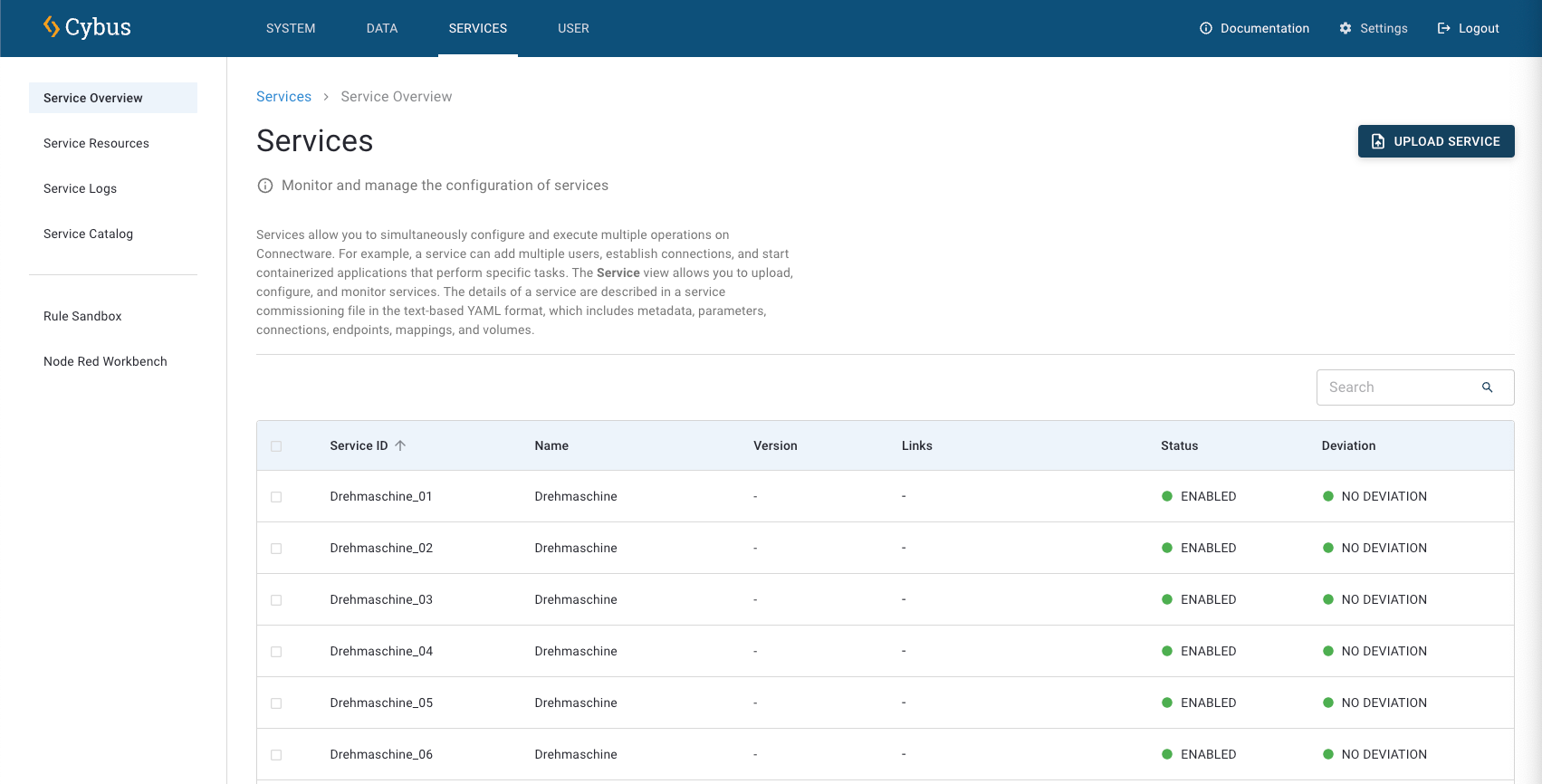

Service Overview

In the Service Overview, the following information and options are available:

Upload Service

• Upload service commissioning files to Connectware to install services.

Search

The search allows you to filter the list.

• Minimum search length is 3 characters.

• Search services by service ID or name.

• Search is case-insensitive.

Service ID

• The unique identifier of each service.

Name

• The name of each service.

Version

• The version number of each service, if applicable.

Links

• The links for specific functions of the service (e.g. dashboards, servers).

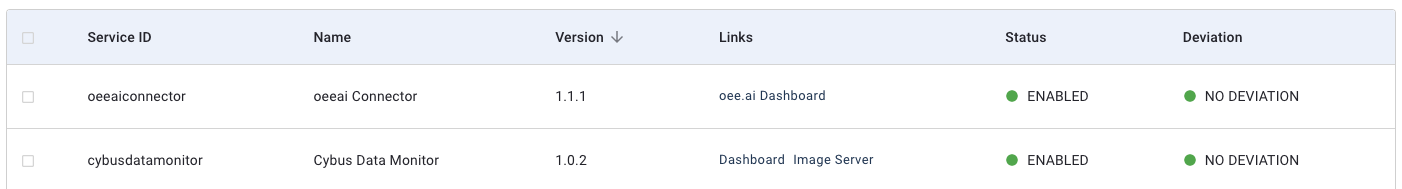

Links in the Service Overview

Status

• The current state of the service (e.g., enabled or not enabled).

Deviation

• The current state of the deviations (e.g., no deviation or deviation).
