Service log messages of all services provide a detailed view of all service activities for effective monitoring and troubleshooting. You can filter, search, and export log data in the Service Logs tab of the Service Details view. By accessing these service logs, you can:
Track important events
Ensure optimal service performance
Identify and diagnose issues for troubleshooting
You can view detailed log messages for each service in the Service Logs tab of the Service Details view.

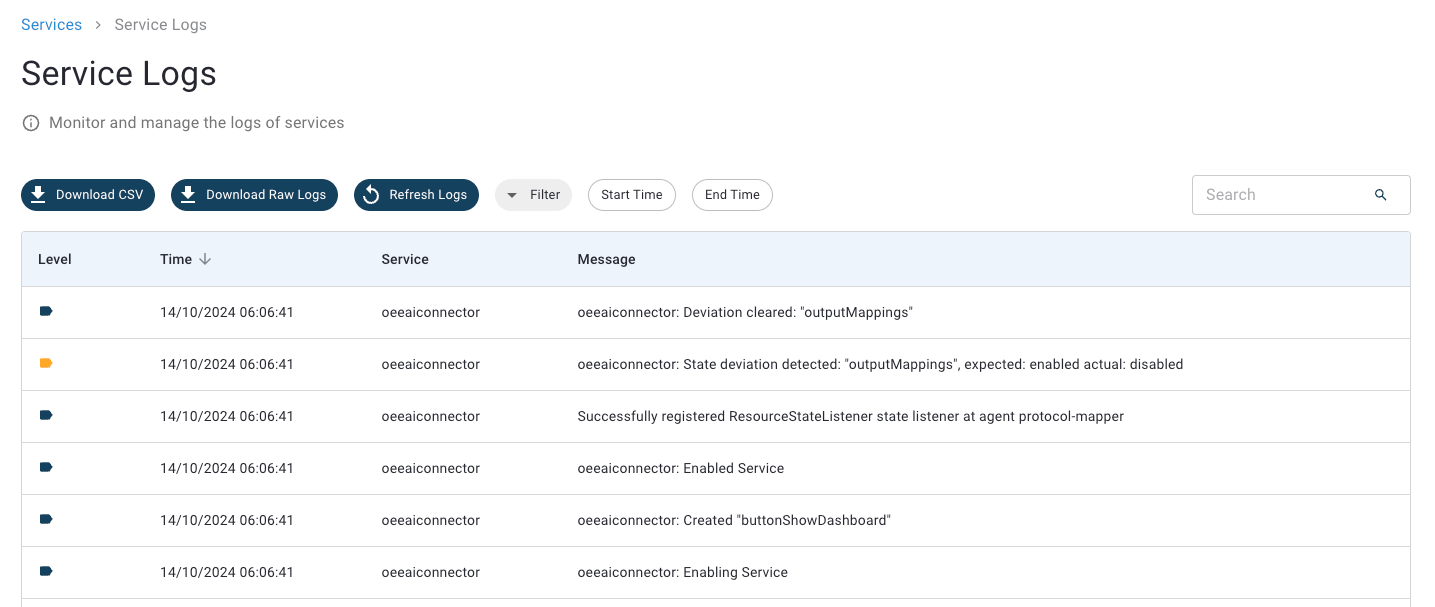

To open the Service Logs view, click Services and click Service Logs.
Download CSV
Export the visible service log entries as a CSV file. The service log entries in the CSV file are limited to the most recent 500 lines in the current view. To download the full log, click Download Raw Logs.
Download Raw Logs
Export all service log entries as a .log file.
Refresh Logs
Refresh the service logs messages to show the most recent entries.
Filter
Use these filters to focus on specific service log message types based on your troubleshooting or monitoring needs. You can filter for Debug, Error, Fatal, Info, Trace, and Warn messages.
Start Time/End Time
Select a specific start date/time and end date/time to define the period for which you want to view service log messages.
Search
Find specific service log messages by keyword. The search filters the displayed service log messages, showing only matching results.
Level
The type of message. For example, info or warning.
Time
The exact date and time when each log message was generated.
Service
The name of the service.
Message
Displays the message of the service log. For example, Lathe_01: Enabled Service.

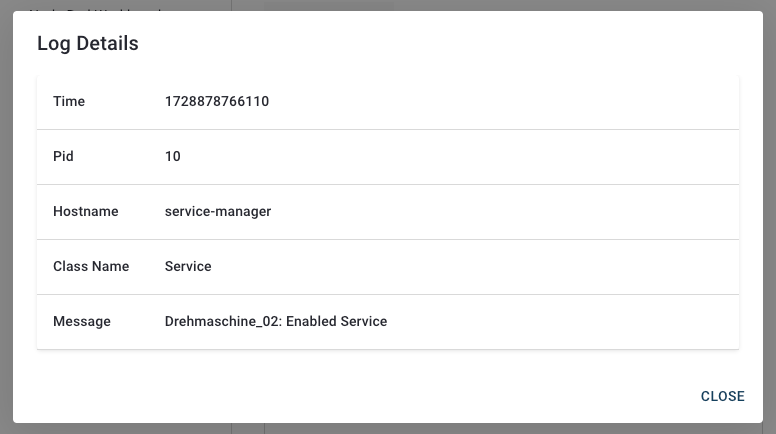

The Log Details dialog provides in-depth information about specific log entries in the service logs.
To open the Log Details dialog, click a log entry of a service.
When you select a log entry, this dialog displays the following fields:
Time
The timestamp of the log entry in Unix milliseconds format. Example: 1728878765733
Pid
The Process ID associated with the log entry.
Hostname
The name of the host or service that generated the log. Example: service-manager
Class Name
The class or category of the log entry. Example: Service
Message
A detailed description of the logged event. Example: Drehmaschine_02: Enabling Service
