Service Links View

Overview

The Service Links View provides an overview of all Cybus::Link resources. The link resource provides direct access to web resources. This resource can be external to Connectware or refer to a location that is available within a web server of a container. For more information, see Service Links Details View.

  • To open the Service Links View for all service links, click Services > Service Resources and click the Service Links tab.

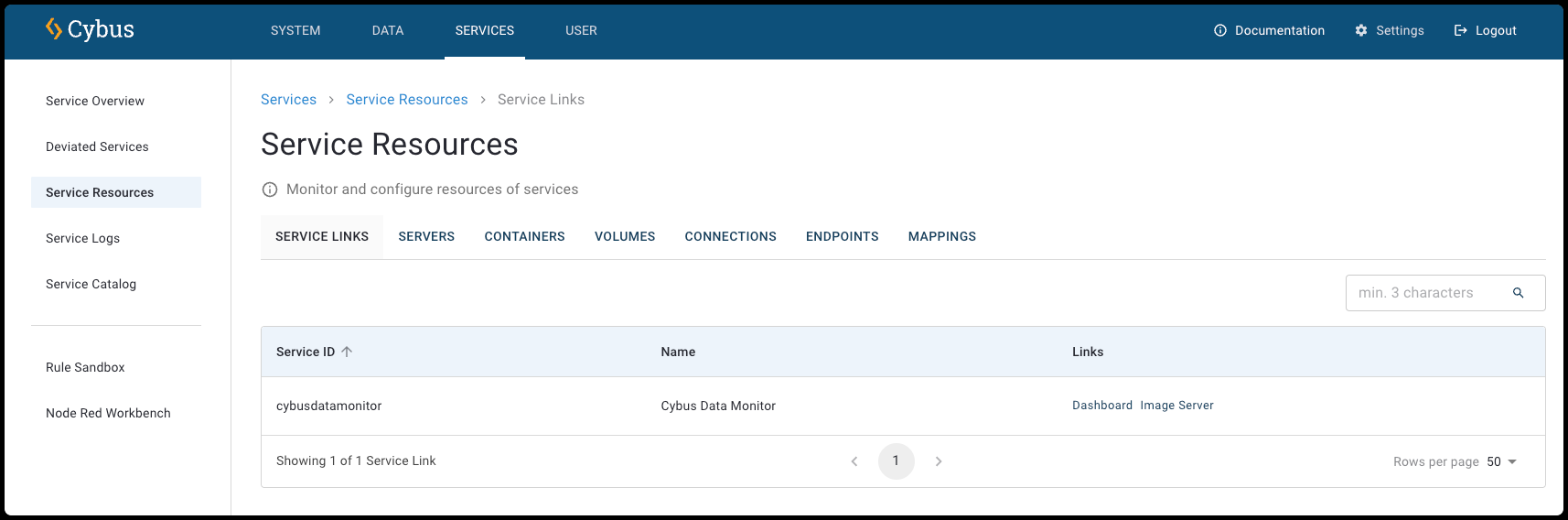

Service Links View

In the list, all service links are displayed with the following information:

Service ID

  • The unique identifier of the service that contains this service link.

Name

  • The name of the service link.

Links

  • The link provides direct access to web resources of this service. This resource can be external to Connectware or refer to a location that is available within a web server of a container. For example, a dashboard.

  • To open the Service Links Details View for a specific service, click Services > Service Resources and select a service.

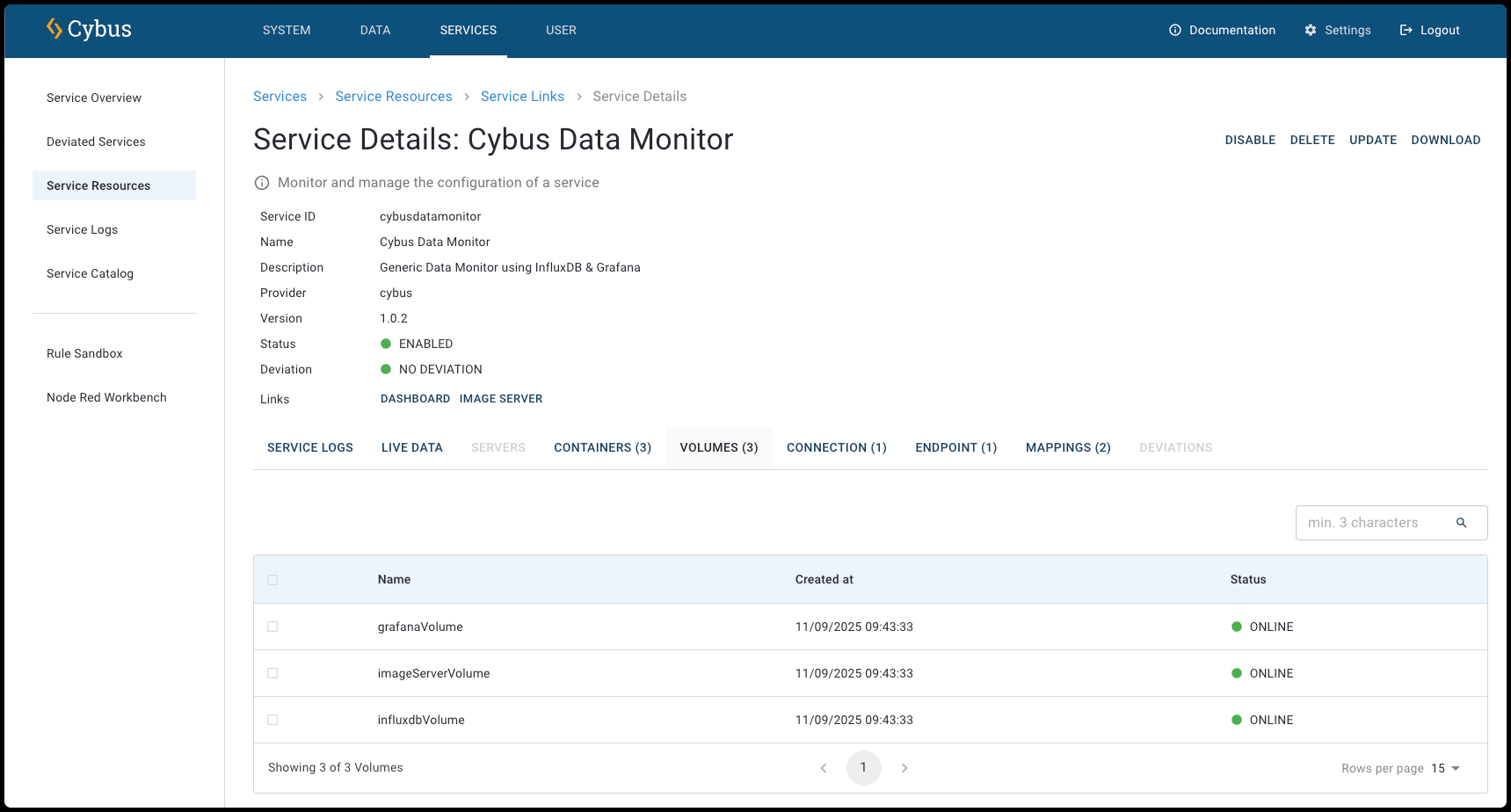

Connections Details View

At the top of the Service Links Details View, the following information is displayed:

Service ID

  • The unique identifier of the service that contains this service link.

Name

  • The name of the service link (e.g. Cybus Data Monitor).

Description

  • A description of the service link.

Provider

  • The provider of the service link.

Version

  • The version of the service link.

Status

  • The current state of the service link (e.g., enabled).

Deviation

  • The status of the deviation of the service link (e.g., no deviation).

You can view detailed log messages for the service links of the selected service in the Service Logs tab of the Service Links Details View.

Download CSV

  • Export the visible log entries as a CSV file.

The log entries in the CSV file are limited to the most recent 500 lines in the current view. To download the raw logs that contain the full logs, see Logs of All Services.

Refresh Logs

  • Refresh the log messages to show the most recent entries.

Filter

  • Use these filters to focus on specific service log message types based on your troubleshooting or monitoring needs. You can filter for Debug, Error, Fatal, Info, Trace, and Warn messages.

Start Time/End Time

  • Select a specific start date/time and end date/time to define the period for which you want to view log messages.

Search

The search allows you to filter the list.

  • Minimum search length is 3 characters.

  • Search services by service ID or name.

  • Search resources by name, ID, protocol, parent resource ID, agent name, or service ID.

  • Search is case-insensitive.

Level

  • The type of message. For example, info or warning.

Time

  • Shows the exact date and time when each log message was generated.

Message

  • Displays the message of the log (e.g., lathe_01: Enabled InfluxdbConnection).
