# LDAP Configuration {% hint style="info" %} LDAP integration is an optional Connectware feature which requires an Enterprise Edition License. {% endhint %} For the optional LDAP authentication feature, some extra configuration is needed. Cybus Connectware supports user authentication and authorization through LDAP based on your existing local directory service like Active Directory or OpenLDAP. The following text guides you through setting up a connection and preparing your LDAP users to access Connectware. ## Connectware LDAP Modes The Connectware LDAP integration supports two ways of authentication and authorization called LDAP modes. 1. **Group mode** : permissions of Connectware users will be set by LDAP group memberships 2. **Attribute mode** - permissions of Connectware users will be set by LDAP user attributes ### Group Mode Connectware roles can be associated with LDAP groups. When an LDAP user successfully logs in for the first time, a Connectware user is created. Depending on the LDAP group memberships of the LDAP user, corresponding roles will be assigned to the Connectware user automatically. In this way, permissions can be easily handled by adding or removing LDAP users to or from the related LDAP groups. ### Attribute Mode When the LDAP user successfully logs in for the first time, a Connectware user is created. A custom user attribute of the LDAP user names any user roles that should be automatically assigned to the Connectware user. Authorization is controlled by removing or adding Connectware role names from or to the LDAP user. ## Dedicated Bind User Connectware supports 2 ways of authenticating a user: with and without a dedicated LDAP user to bind with the LDAP server. To make use of a dedicated bind user, set the environment variable `CYBUS_LDAP_BIND_PASSWORD`. ### Not Using Dedicated Bind User A dedicated bind user is not needed, when: * all user entries are leafs of the same tree whitin the LDAP Directory Information Tree (DIT) and share the same base DN. E.g. the base DN is `cn=users,dc=example,dc=org` and the DN of all users are of kind `,cn=users,dc=example,dc=org` * groups are not nested: E.g a user that is member of `group A` and `group A` is member of `group B` and `group B` is the groups that is linked with a Connectware role. When no dedicated bind user is used, Connectware takes the given `bind DN`, adds the `user RDN` and binds with the user credentials to the LDAP server. Binding with user credentials is the actual authentication step with an LDAP server. ### Using Dedicated Bind User A dedicated bind user has to be used, when a search or groups is required, when: * user entries are spreaded within a DIT: E.g `user 1` has the DN `cn=user1,cn=foo,dc=example,dc=org` and `user2` has the DN `cn=user2,cn=bar,dc=example,dc=org`. In order to find the user entry, a search is required with the base `dc=example,dc=org` as this is the base DN that both users have in common. * nested groups are used. In this case the search base is the DN that all groups and users have in common. ## Connectware LDAP Parameters In order to enable the LDAP feature, the following [Environment Variables](/1-7-3/documentation/configuration/environment-variables.md) must be configured: | Parameter | Description | | ----------------------------- | ---------------------------------------------------------------------------------------------------------------------------------------- | | `CYBUS_LDAP_ENABLED` | Enables LDAP integration when set to `true`. If `false`, LDAP is disabled and all other LDAP parameters are ignored. | | `CYBUS_LDAP_BIND_DN` | Specifies the bind DN for LDAP authentication. | | `CYBUS_LDAP_BIND_PASSWORD` | Required for dedicated bind user. If not set, `CYBUS_LDAP_BIND_DN` is used as base DN to generate a bind DN with user login credentials. | | `CYBUS_LDAP_MODE` | Specifies the LDAP mode: Either `group` or `attribute`. | | `CYBUS_LDAP_URL` | The URL of the LDAP/AD server. | | `CYBUS_LDAP_SEARCH_BASE` | Starting point for LDAP searches. Only used with dedicated bind user. Example: `ou=tech,dc=cybus,dc=io`. | | `CYBUS_LDAP_SEARCH_FILTER` | Optional custom filter for user search requests. Only valid with dedicated user. | | `CYBUS_LDAP_ROLES_ATTRIBUTE` | LDAP attribute containing user roles. Only valid with `CYBUS_LDAP_MODE=attribute`. | | `CYBUS_LDAP_MEMBER_ATTRIBUTE` | LDAP attribute for group memberships. Only valid with `CYBUS_LDAP_MODE=group`. Usually set to `memberOf`. | | `CYBUS_LDAP_USER_RDN` | LDAP user property (e.g., `cn`) containing the username used for Connectware login. | | `CYBUS_LDAPS_TRUST_ALL_CERTS` | When `true`, accepts all servers without certificate check for Secure LDAP. Default is `false`. | | `CYBUS_LDAPS_CA_FILE` | Path to CA file for LDAP server validation. Used with Secure LDAP when `CYBUS_LDAPS_TRUST_ALL_CERTS` is `false`. | | `CYBUS_LDAP_AUTO_ENFORCE_MFA` | When `true`, enforces MFA for LDAP users after their first login. | ## Configuration This description applies to a Docker Compose deployment (see [Docker Compose](/1-7-3/documentation/configuration/environment-variables.md#docker-compose)), not a kubernetes one. 1\. Navigate into your Connectware installation directory. If you have used the default values during installation this would be `/opt/connectware`. 2\. The directory contains a `.env` file that is loaded when starting Connectware. Open the `.env` file in a text editor of your choice. 3\. Locate the LDAP settings section in the `.env` file. By default the settings should look like this: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=false CYBUS_LDAP_MODE= CYBUS_LDAP_BIND_DN= CYBUS_LDAP_URL= CYBUS_LDAP_USER_RDN= CYBUS_LDAP_ROLES_ATTRIBUTE= CYBUS_LDAP_MEMBER_ATTRIBUTE= ``` {% endcode %} 4\. Set the individual parameters according to your local directory service configuration. Example configuration for LDAP mode `Attribute`: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=true CYBUS_LDAP_MODE=attribute CYBUS_LDAP_BIND_DN=ou=tech,dc=example,dc=org CYBUS_LDAP_URL=ldap:// CYBUS_LDAP_USER_RDN=cn CYBUS_LDAP_ROLES_ATTRIBUTE=employeeType ``` {% endcode %} Example configuration for LDAP mode `Group`: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=true CYBUS_LDAP_MODE=group CYBUS_LDAP_BIND_DN=ou=tech,dc=example,dc=org CYBUS_LDAP_URL=ldap:// CYBUS_LDAP_USER_RDN=cn CYBUS_LDAP_MEMBER_ATTRIBUTE=memberOf ``` {% endcode %} This configuration would look for users applicable to the LDAP query `cn=username,ou=tech,dc=example,dc=org`. Please do not use quotation marks to encapsule the variable values! **Configuration with dedicated Bind User** Example configuration for LDAP mode `Attribute`: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=true CYBUS_LDAP_MODE=attribute CYBUS_LDAP_BIND_DN=cn=,ou=tech,dc=example,dc=org CYBUS_LDAP_BIND_PASSWORD= CYBUS_LDAP_SEARCH_BASE=dc=example,dc=org CYBUS_LDAP_URL=ldap:// CYBUS_LDAP_USER_RDN=cn CYBUS_LDAP_ROLES_ATTRIBUTE=employeeType ``` {% endcode %} Example configuration for LDAP mode `Group`: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=true CYBUS_LDAP_MODE=group CYBUS_LDAP_BIND_DN=cn=,ou=tech,dc=example,dc=org CYBUS_LDAP_BIND_PASSWORD= CYBUS_LDAP_SEARCH_BASE=dc=example,dc=org CYBUS_LDAP_URL=ldap:// CYBUS_LDAP_USER_RDN=cn CYBUS_LDAP_MEMBER_ATTRIBUTE=memberOf (be aware to change the RDN prefix (cn) if needed for CYBUS_LDAP_BIND_DN=cn=,ou=tech,dc=example,dc=org) ``` {% endcode %} 5\. After saving the new configuration it has to be loaded by the running Connectware instance by executing `docker compose up -d` from within the installation folder. If the Connectware instance is running as system service please restart by executing `systemctl restart connectware` instead. 6\. The new configuration is now loaded. The next step is to supply your directory service users with Connectware roles (LDAP mode attribute) or link LDAP groups with Connectware roles (LDAP mode group). ## Example Setup for LDAP Mode Group In order to assign permission to Connectware users by grouping their LDAP user entries with LDAP groups you have to do the following steps: 1. Define LDAP groups according to Connectware roles you want to use. 2. Configure Connectware with LDAP parameters. 3. Link LDAP groups with Connectware roles. 4. Assign LDAP users to these LDAP groups. #### 1. Define LDAP Groups According to Connectware Roles In this example, extra groups are created, which will be associated with Connectware roles. This is not a mandatory practice but shall demonstrate the concept. Assuming we have the following DIT: {% code lineNumbers="true" %} ```yaml dc=example,dc=org ├ cn=users │ ├ cn=user1 │ ├ cn=user2 │ └ cn=user3 └ ou=connectware ``` {% endcode %} Create 2 groups `cw-admin` and `cw-minimal` as follows: {% code lineNumbers="true" %} ```yaml dc=example,dc=org ├ cn=users │ ├ cn=user1 │ ├ cn=user2 │ └ cn=user3 └ ou=connectware ├ cn=cw-minimal └ cn=cw-admin ``` {% endcode %} Now add `user1` to `cw-minimal`. If you run the command (change `PASSWORD` to password of `user1`) {% code lineNumbers="true" %} ```yaml ldapsearch -LLL -b "cn=user1,cn=users,DC=example,DC=org" -D "CN=user1,cn=users,DC=example,DC=org" -w PASSWORD ``` {% endcode %} you shall see something like this: {% code lineNumbers="true" %} ```yaml dn: CN=user1,CN=users,DC=example,DC=org objectClass: top objectClass: person objectClass: organizationalPerson objectClass: user cn: user1 ... memberOf: CN=cw-minimal,OU=connectware,DC=example,DC=org ... ``` {% endcode %} If you are using OpenLDAP and you do not see the attribute `memberOf` you shall try the following command: {% code lineNumbers="true" %} ```yaml ldapsearch -LLL -b "cn=user1,cn=users,DC=example,DC=org" -D "CN=user1,cn=users,DC=example,DC=org" -w PASSWORD + ``` {% endcode %} If you see the attribute `memberOf` now, your configuration is using `memberOf` as operation attribute (becomes important in the next step). If you still do not see the attribute `memberOf`, your OpenLdap is missing the `memberOf module`. Thus the OpenLDAP instance in not applicable for the LDAP group mode and need modifications first. #### 2. Configure Connectware with LDAP Parameters Edit the file `.env` as follows: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=true CYBUS_LDAP_MODE=group CYBUS_LDAP_BIND_DN=ou=users,dc=example,dc=org CYBUS_LDAP_URL=ldap://127.0.0.1:389 CYBUS_LDAP_MEMBER_ATTRIBUTE=memberOf CYBUS_LDAP_USER_RDN=cn ``` {% endcode %} Be aware of adjusting the LDAP url, the given example uses an Active Directory service that runs on the local machine. #### 3. Link LDAP Groups with Connectware Roles Login into Connectware as `admin` and navigate to the section **User Management / Users and Roles**. Click on **Roles** and afterwards on **Add Role**. Name the new role `LDAP-Admin` and copy the permissions from the existing role `connectware-admin`. To associate this role with the LDAP group `cw-minimal`, you have to copy the whole DN of that LDAP group to the field `DN of AD group`. In our example this will be `CN=cw-admin,OU=connectware,DC=example,DC=org`

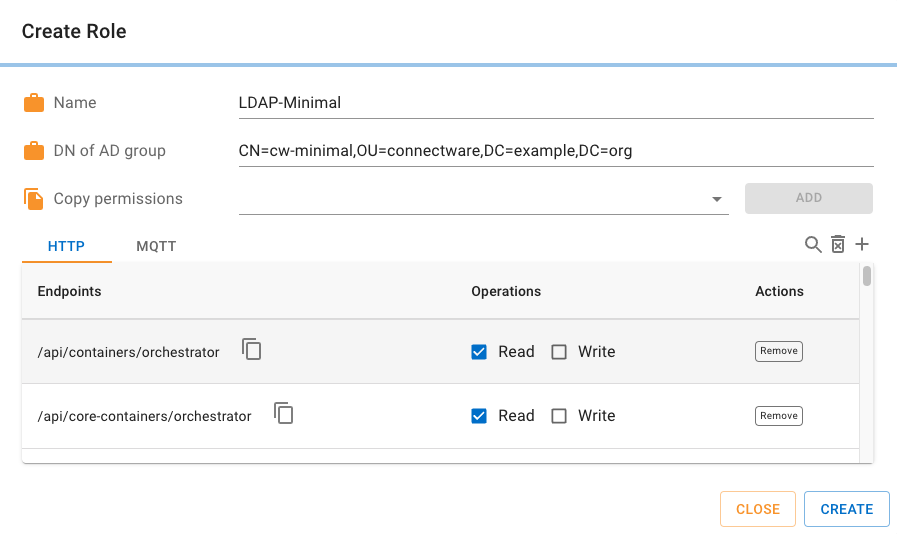

Click on **Create** and your new role is added. Add another role, name it `LDAP-Minimal`, copy permissions from `minimum-access` and add the DN of the related LDAP group `CN=cw-minimum,OU=connectware,DC=example,DC=org`. #### 4. Assign LDAP Users to LDAP Groups Now you could assign different Connectware roles to your users `user1` `user2` `user3` by adding them to, or removing them from the groups `cw-minimal` or `cw-admin`. When you add `user1` to the group `cw-admin` and login at Connectware, the `user1` will be created (if it is the first login) and the role `LDAP-Admin` will be assigned automatically. Now logout from Connectware, remove `user1` from group `cw-admin` and add it to `CW-Minimal`. Login at Connectware with `user1` again. You’ll realize, that `user1` has limited access and you can’t navigate to the user section. Permissions of `user1` changed according to the LDAP group membership. If you login as `user2` and `user2` is not assigned to any LDAP group yet, the `user2` will be created but you’ll see an error dialog saying that no permission was added and thus you will be forced to logout again. ## Example Setup for LDAP Mode Attribute 1. LDAP setup 2. Configure Connectware with LDAP parameters 3. Assign roles to LDAP user entry #### 1. LDAP Setup The following examples assume to have an LDAP DIT like the following: {% code lineNumbers="true" %} ```yaml dc=example,dc=org └ cn=users ├ cn=user1 └ cn=user2 ``` {% endcode %} This structure is not mandatory but be aware to adjust the following examples according to your LDAP setup in the next steps. #### 2. Configure Connectware with LDAP Parameters Edit the file `.env` as follows: {% code lineNumbers="true" %} ```yaml CYBUS_LDAP_ENABLED=true CYBUS_LDAP_MODE=attribute CYBUS_LDAP_BIND_DN=ou=users,dc=example,dc=org CYBUS_LDAP_URL=ldap://127.0.0.1:389 CYBUS_LDAP_ROLES_ATTRIBUTE=employeeType CYBUS_LDAP_USER_RDN=cn ``` {% endcode %} Be aware of adjusting the LDAP url. #### 3. Assign roles to LDAP user entry To assign roles to LDAP users you have to add the Connectware role names as values to the users **CYBUS\_LDAP\_ROLES\_ATTRIBUTE** that you defined in the `.env` file. In our example, we will use the attribute name `employeeType`. To add the Connectware role `connectware-admin` to the LDAP user `user1`, add the attribute `employeeType` (defined as roles attribute in the `.env` file) with the value `connectware-admin` to the LDAP user `user1` Add the Connectware role `minimum-access` to the `user2` by adding the attribute `employeeType` with the value `minimum-access` to the LDAP user `user2`. You could check if the attributes have been set correctly by cunning the following command: {% code lineNumbers="true" %} ```yaml ldapsearch -LLL -b "cn=user1,cn=users,DC=example,DC=org" -D "CN=user1,cn=users,DC=example,DC=org" -w PASSWORD ``` {% endcode %} you shall see something like this: {% code lineNumbers="true" %} ```yaml dn: CN=user1,CN=users,DC=example,DC=org objectClass: top objectClass: person objectClass: organizationalPerson objectClass: user cn: user1 ... employeeType: connectware-admin ... ``` {% endcode %} If you now log into Connectware as `user1`, the Connectware role `connectware-admin` will be assigned to the user `user1`. To revoke access to Connectware for a certain user, the Connectware roles just have to be removed from the LDAP user again by deleting the corresponding attribute `employeeType`. Connectware comes with predefined user roles like `connectware-admin` and `minimum-access` but additional roles can be created and assigned to users in the same way. ## User Management for LDAP Users in Connectware

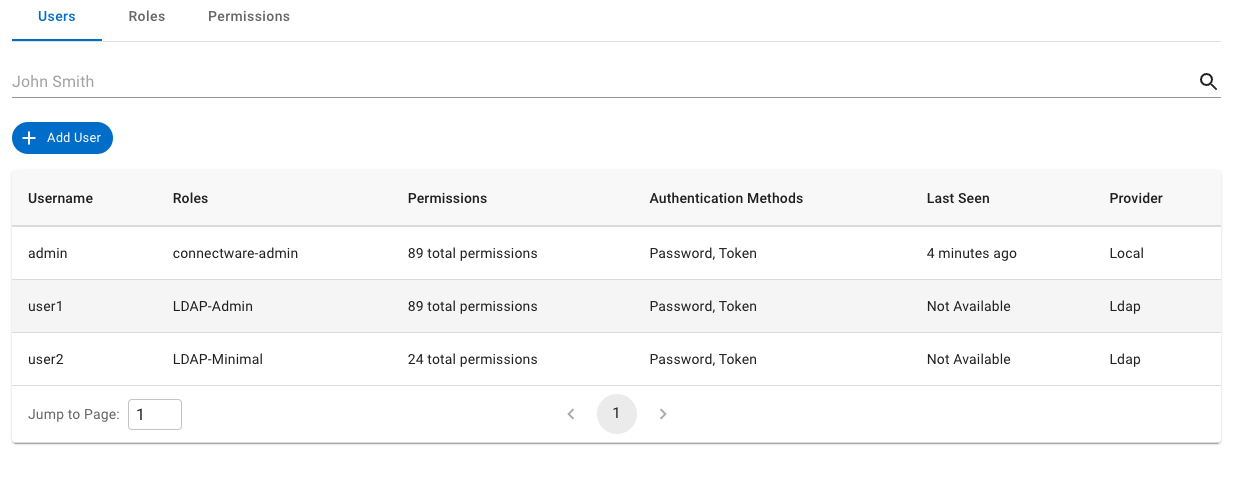

LDAP can be used to connect to your local user directory service to authenticate and authorize Connectware users during login to verify credentials and synchronize with assigned roles. LDAP User Management in Connectware is different in a few ways from regular Connectware users:

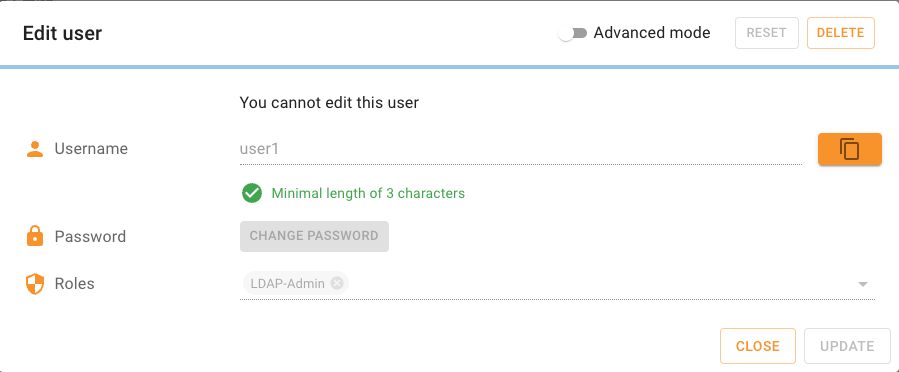

### Roles You can not add or remove roles from within Connectware. All roles have to be assigned in the user details of the directory user. Modified user roles are synched to the Connectware user on each successful login. ### GrantTypes Every LDAP user is defaulting to token authentication. This property is not modifiable. ### Permissions You are still able to add and remove additional permissions to the LDAP user. All additional permissions stay active until they are either individually removed from the user profile or the local user information are deleted from the Connectware (see **Deleting LDAP Users**). ### LDAP User Password You can not change the password from within Connectware as it uses the LDAP directory service for authentication. ### Deleting LDAP Users You can still remove LDAP users from the Connectware user database. Please keep in mind that this only deletes the Connectware internal user information. Deleting these local user information will not restrict the user from logging into Connectware again. To completely revoke access of an LDAP user to Connectware, you have to either remove all Connectware user roles from that user or remove him from LDAP groups linked with Connectware roles, depending on the LDAP integration mode you’re using. ## LDAP Filters All LDAP search filter values need to be escaped via the XX hex notation defined by the [RFC4515](https://tools.ietf.org/search/rfc4515) standard. This means that every non basic UTF-8 character used as filter value needs to be replaced with the appropriate hex values defined in [Chapter-3](https://tools.ietf.org/search/rfc4515#section-3) of the IETF transcript. ### RFC4515 Excerpt {% code lineNumbers="true" %} ```yaml EXCLAMATION = %x21 ; exclamation mark ("!") AMPERSAND = %x26 ; ampersand (or AND symbol) ("&") ASTERISK = %x2A ; asterisk ("*") COLON = %x3A ; colon (":") VERTBAR = %x7C ; vertical bar (or pipe) ("|") TILDE = %x7E ; tilde ("~") ``` {% endcode %} ### Example {% code lineNumbers="true" %} ```yaml Clear text search filter: '(cn=*)' Escaped search filter: '(cn=*\2a*)' ``` {% endcode %} For an exhaustive list of valid UTF-8 characters and their respective hex value, please consult [UTF-8](https://www.utf8-chartable.de/unicode-utf8-table.pl) . --- # Agent Instructions: Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter: ``` GET https://docs.cybus.io/1-7-3/documentation/configuration/ldap-configuration.md?ask= ``` The question should be specific, self-contained, and written in natural language. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
