Live Data

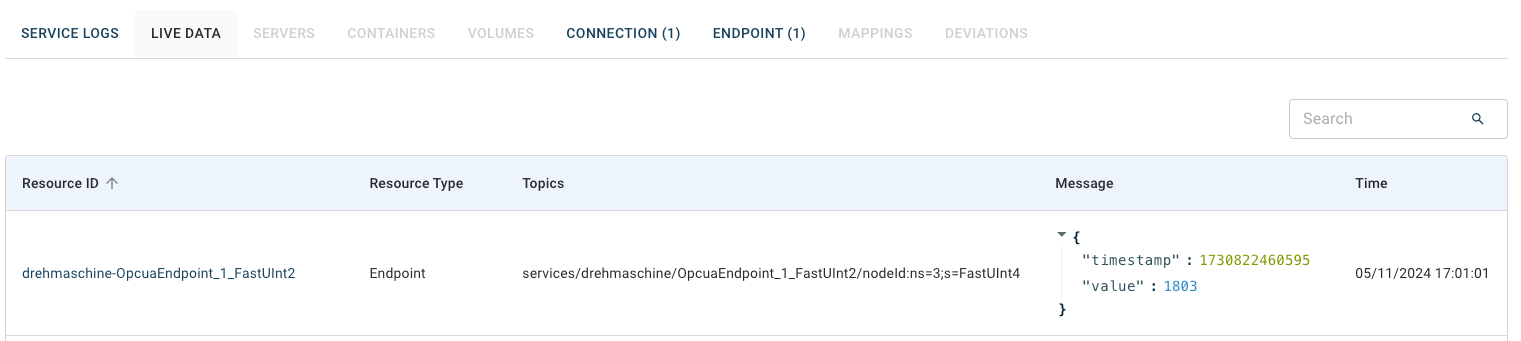

The Live Data tab allows you to monitor MQTT topics of the selected service directly in the Service Details view. Live data provide insights into topic activity, message content, and associated resources.

For monitoring all MQTT topics, use the Data Explorer.

  • To open the Live Data view, click Services and click a service to open the Service Details view. In this view, click Live Data.

Search

  • Find specific resources or resource IDs. Topics are not searchable.

Resource ID

  • The unique identifier for the resource. You can click the Resource ID for more information on the resource.

Resource Type

  • The type of the resource. Available types include:

    • Endpoint

    • Node

    • Mapping

Topics

  • The complete path of the MQTT topic.

Message

  • The data transmitted by the topic, formatted in JSON.

Example:

{ 'timestamp': 1730908287298, 'value': [] }

Time

  • The timestamp indicating when the data was sent.
