Example 3 - Node with Error (HTTP)

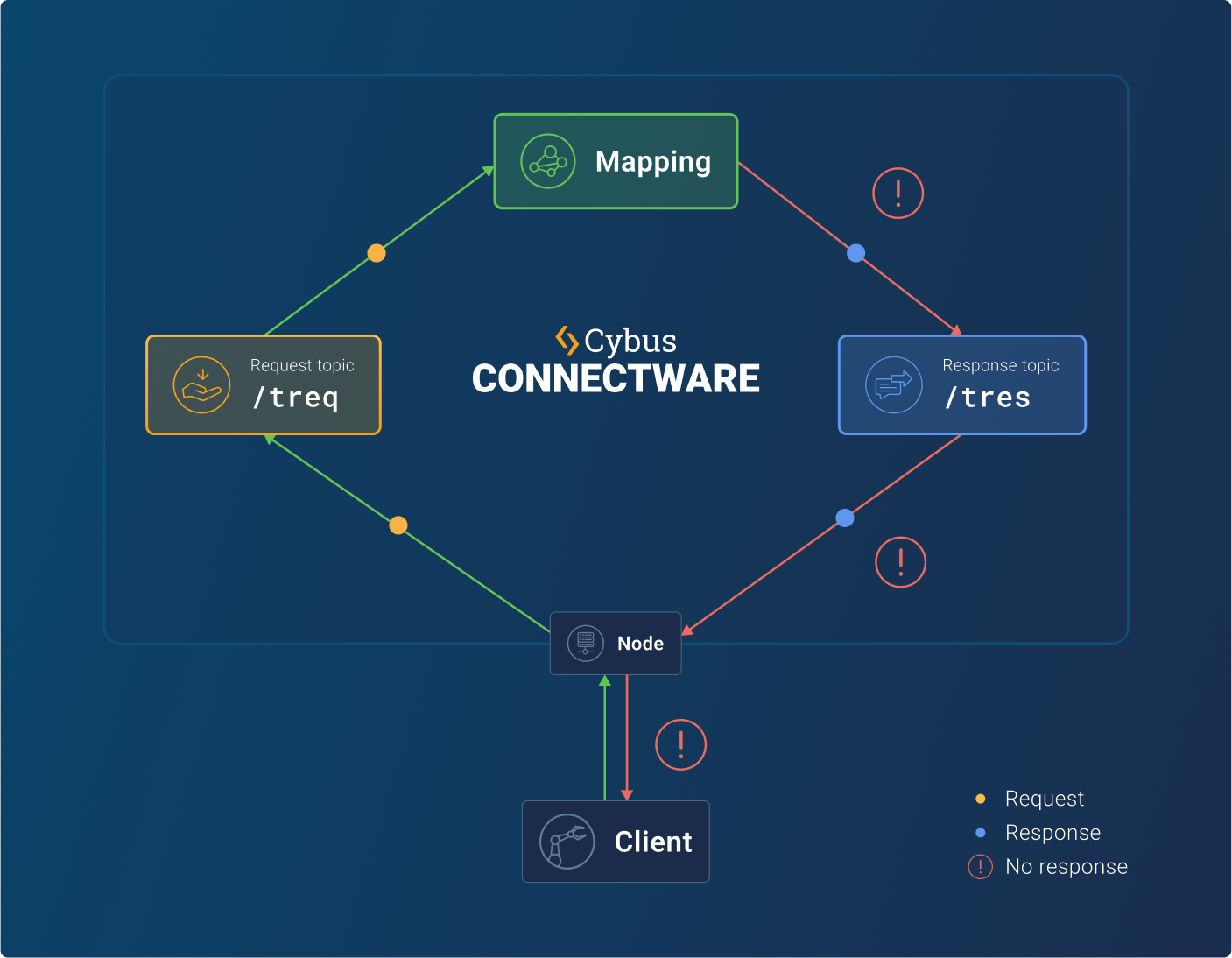

This example demonstrates error handling in FlowSync transactions. Building upon Example 2 - Node with Error (HTTP), the configuration shows how to return custom error responses for HTTP requests. When a request is received, the system generates a response containing a specific HTTP error code (500) along with a custom error message, demonstrating how to handle error scenarios in your services using FlowSync.

• To call the HttpNode in the example below, run the following command:

curl --insecure \
--location 'https://127.0.0.1/data/flowsync/example3' \
--header 'Authorization: Bearer <replace with your token>'

For more information on the FlowSync configuration properties, see Cybus:Node.

1KB

flowsync-example-3-node-with-error-http.yaml

Open

flowsync-example-3-node-with-error-http.yaml

description: FlowSync - Example 3

metadata:
    name: example 3
    version: 1.0.0

resources:
    testServer:
        type: Cybus::Server::Http
        properties:
            basePath: /FlowSync

    exampleNode:
        type: Cybus::Node::Http
        properties:
            parent: !ref testServer
            method: GET
            route: /example3
            operation: transaction

    exampleMappings:
        type: Cybus::Mapping
        properties:
            mappings:
                - subscribe:
                      endpoint: !ref exampleNode
                  publish:
                      endpoint: !ref exampleNode
                  rules:
                      - transform:
                            expression: >-
                                (
                                  {
                                    "id": $.id,
                                    "timestamp": $.timestamp,
                                    "error": {
                                      "code": 500,
                                      "message" : "This is an error message to your HTTP GET request."}
                                  }
                                )
