Example 4 - Node with Timeout Error Code and Error Message (HTTP)

PreviousExample 3 - Node with Error (HTTP)NextExample 5 - Full Transactional Data Flow (HTTP)

Last updated 4 months ago

Was this helpful?

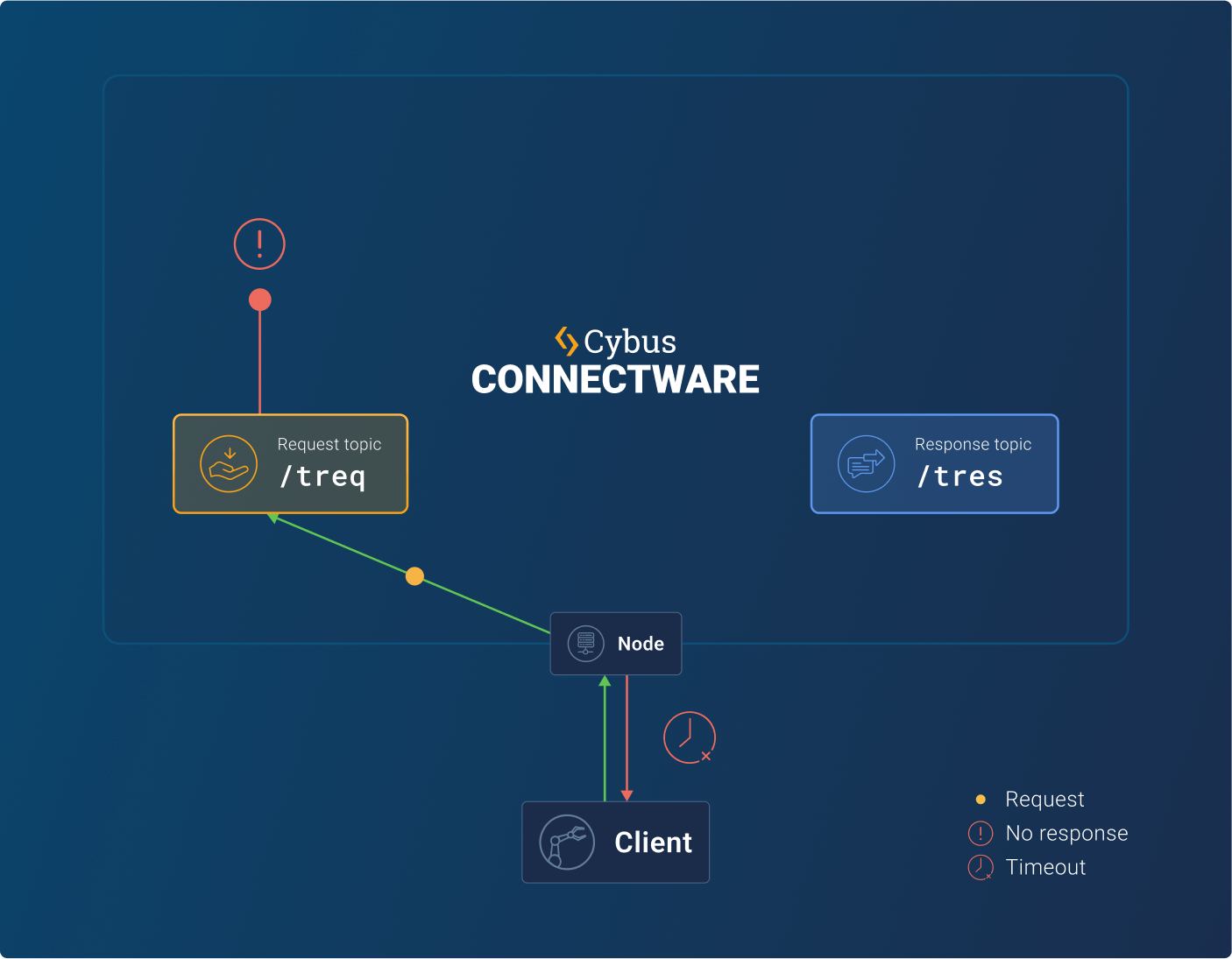

This example demonstrates how to customize timeout handling in FlowSync transactions. The configuration extends by demonstrating how to define specific timeout behavior, including custom timeout duration, error codes, and error messages. When a request does not receive a response within the specified timeout period, the system returns a configured HTTP 408 error along with a custom message, providing a better user experience for timeout scenarios.

  • To call the HttpNode in the example below, run the following command:

curl --insecure \
--location 'https://127.0.0.1/data/flowsync/example4' \
--header 'Authorization: Bearer <replace with your token>'

For more information on the FlowSync configuration properties, see .

description: FlowSync - Example 4

metadata:
    name: example 4
    version: 1.0.0

resources:
    testServer:
        type: Cybus::Server::Http
        properties:
            basePath: /FlowSync

    exampleNode:
        type: Cybus::Node::Http
        properties:
            parent: !ref testServer
            method: GET
            route: /example4
            operation: transaction
            transaction: #optional
                timeout: 2000 # optional
                timeoutErrorCode: 408 # optional
                timeoutErrorMessage: 'Your Request timed out. This is a custom timeout message.' # optional
Example 1 - Node with Transaction Mode (HTTP)
625B
flowsync-example-4-node-with-timeout-error-code-and-error-message-http.yaml
