Working with Service Commissioning Files

PreviousDeviationNextService Details View

Last updated 9 months ago

Was this helpful?

This page explains how to work with services from the service overview page of the Connectware web interface.

If your service fails to install, remove, enable or disable, already created resources will be rolled back and removed to avoid cluttering the Connectware with unused data.

Installing Services

Commissioning files are installed using the web-based interface of the Connectware on the service overview page:

  1. On the navigation panel, click Services.

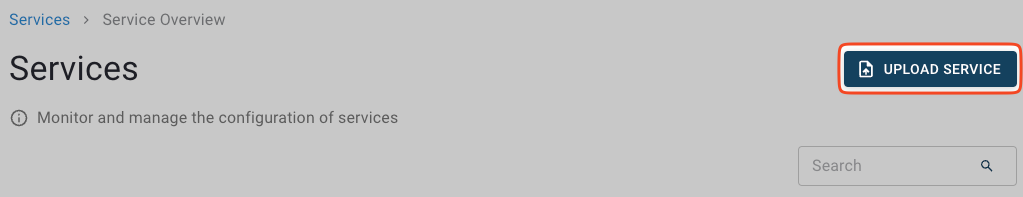

  1. Click Upload Service to add a new service.

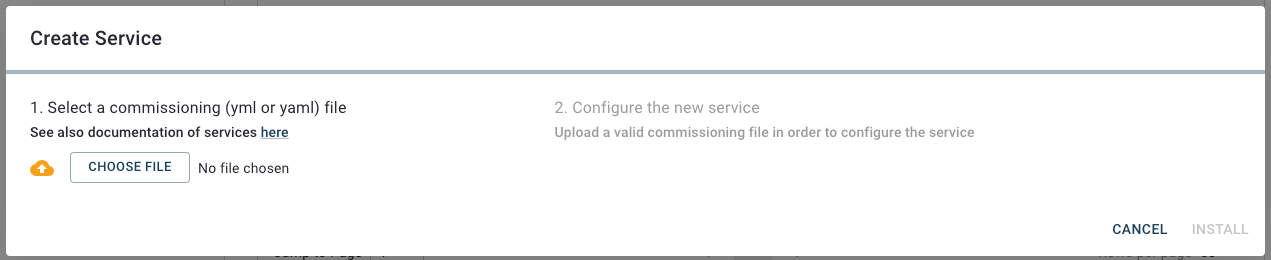

  1. In the Create Service dialog, click Choose File, select a commissioning file from your local computer in the file browser, and click Ok.

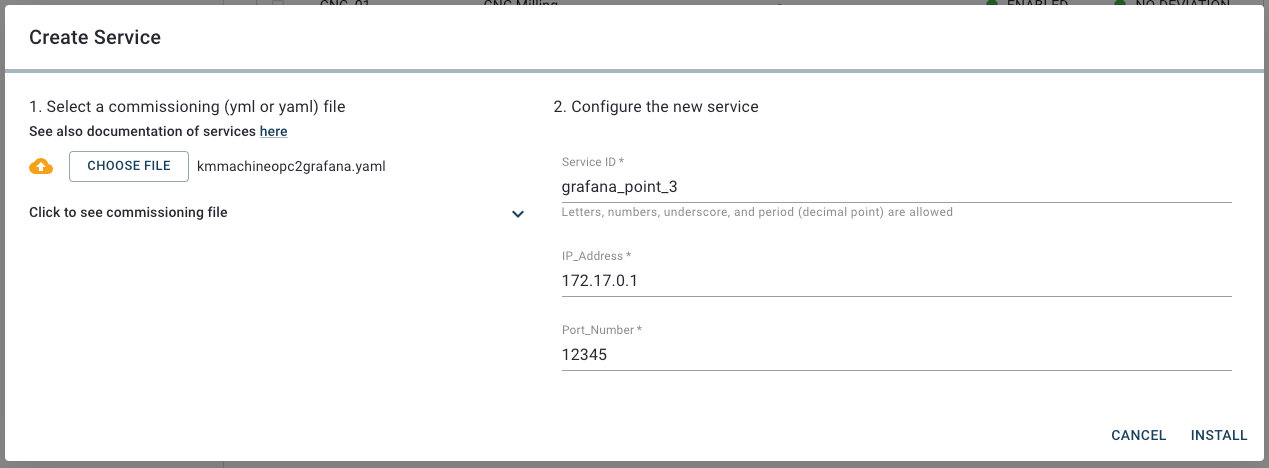

  1. This will fill in the information in the right part of this dialog window, the Configure the new service section. If your service commissioning file provides configurable parameters, you can now enter customized values for your service. Depending on the commissioning file, parameter descriptions and default values may be available. Additionally, the commissioning file can be reviewed by expanding the Click to see commissioning file tab in the left part. Once you are finished click Install.

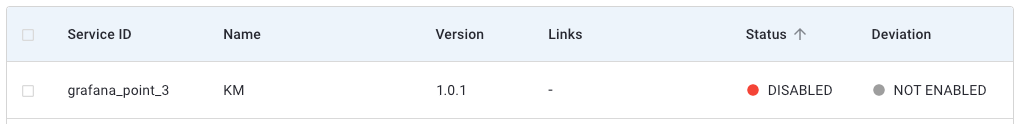

  1. In case everything was configured correctly, you should see the new service added to the service list, initially in the Disabled state.

Enabling Services

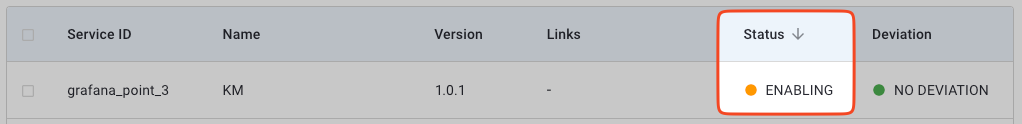

Your service now enters the Enabling state, in which all resources which were defined in the commissioning file are being created.

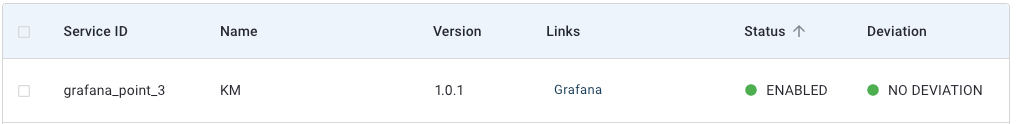

Once the Enabling has finished successfully, your service will reach the Enabled status and a confirmation message is displayed.

Disabling Services

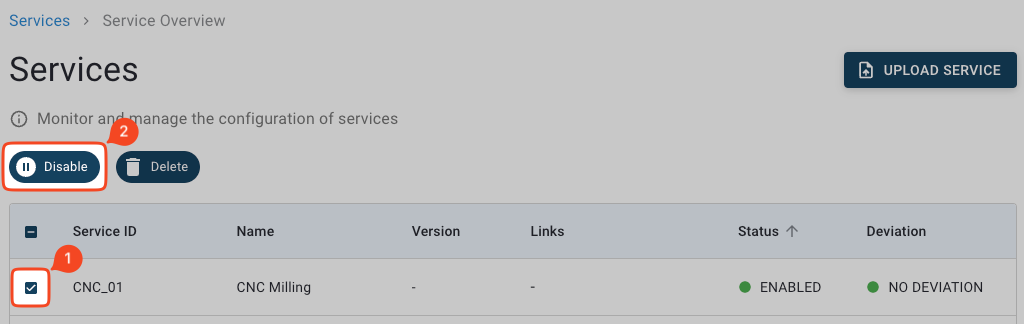

  1. To disable a running service, select the service from the service list (1.) and click Disable (2.) on the toolbar.

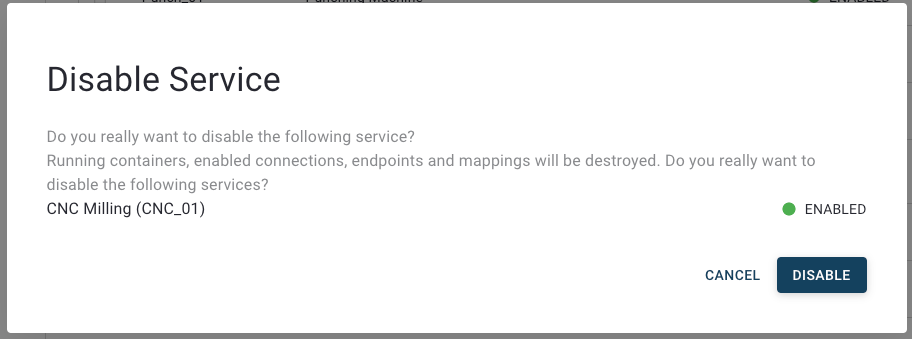

  1. This will open the Disable Service dialog. To disable the running service, confirm your selection by clicking Disable.

Disabling a service will destroy running containers, enabled connections, endpoints and mappings. Volumes however will remain in its current state and will reattach to the service once it is enabled again.

Removing Services

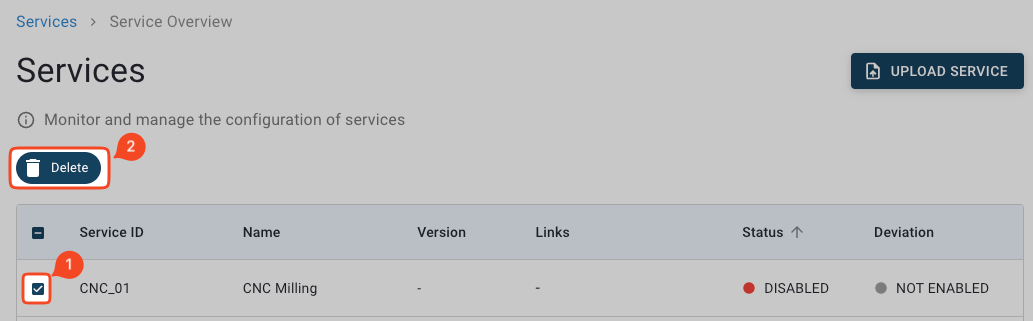

  1. To remove a disabled service, select the service from the service list (1.) and click Delete (2.) on the toolbar.

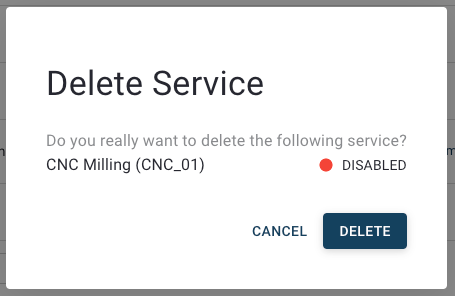

  1. This will open the Delete Service dialog. To complete the service deletion, confirm your selection by clicking Delete in the bottom right corner of the dialog window.

Removing a service will not remove volumes defined by the service commissioning file. These volumes will remain in its current state and reattach to the service once it is installed and enabled again.

Updating Services

Enabling, updating, or reconfiguring a service can only be done from the by selecting the service in the list.

Continue here:

To remove a running service, you must disable it first. Follow the instructions contained in the preceding section section to do so.

Enabling, updating, or reconfiguring a service can only be done from the by selecting the service in the list.

Continue here:
