Granting Access

PreviousExplicit FlowNextAPI Definition

Last updated 6 months ago

Was this helpful?

This assumes a self-registering MQTT client is running and requesting access

  1. On the navigation panel, click User.

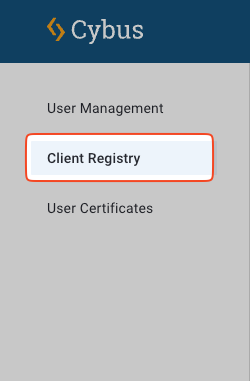

  1. In the sidebar, click Client Registry.

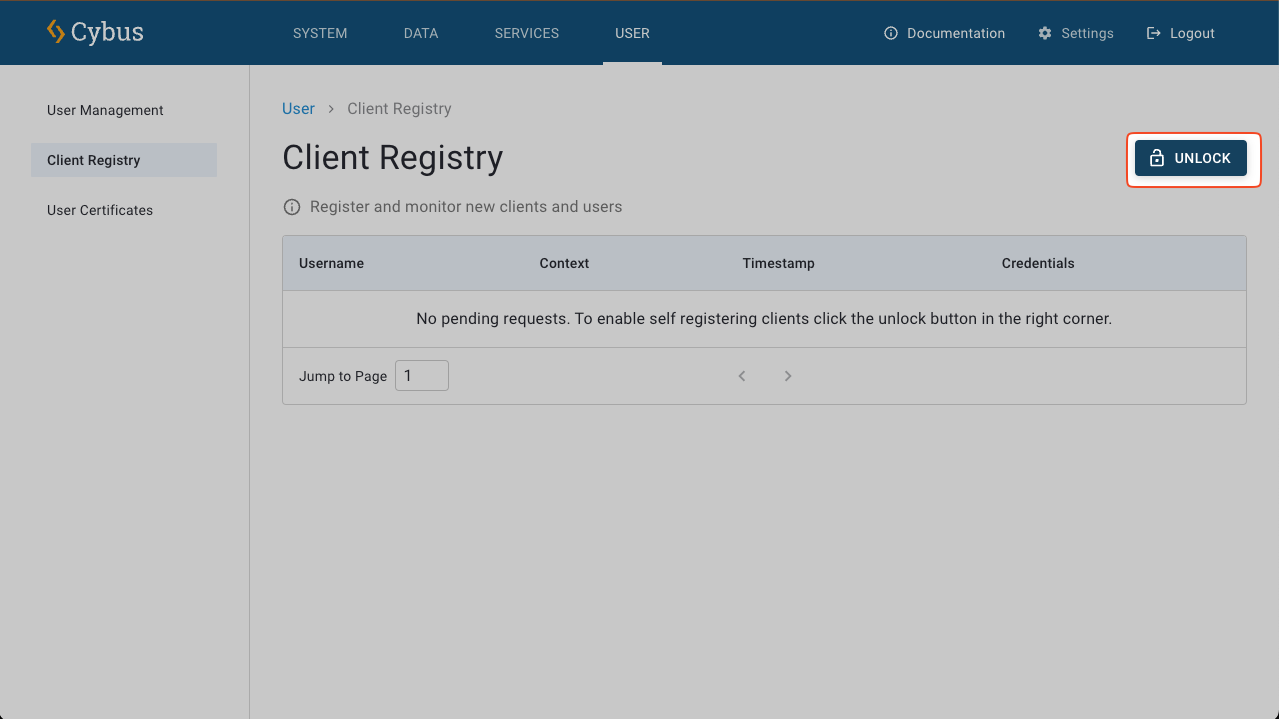

  1. Press the lock icon in the toolbar at the top right, to open (unlock) the Connectware self registration. This self registration is open for 5 minutes. The self registration is closed again automatically after 5 minutes, or when the unlocked icon is clicked again.

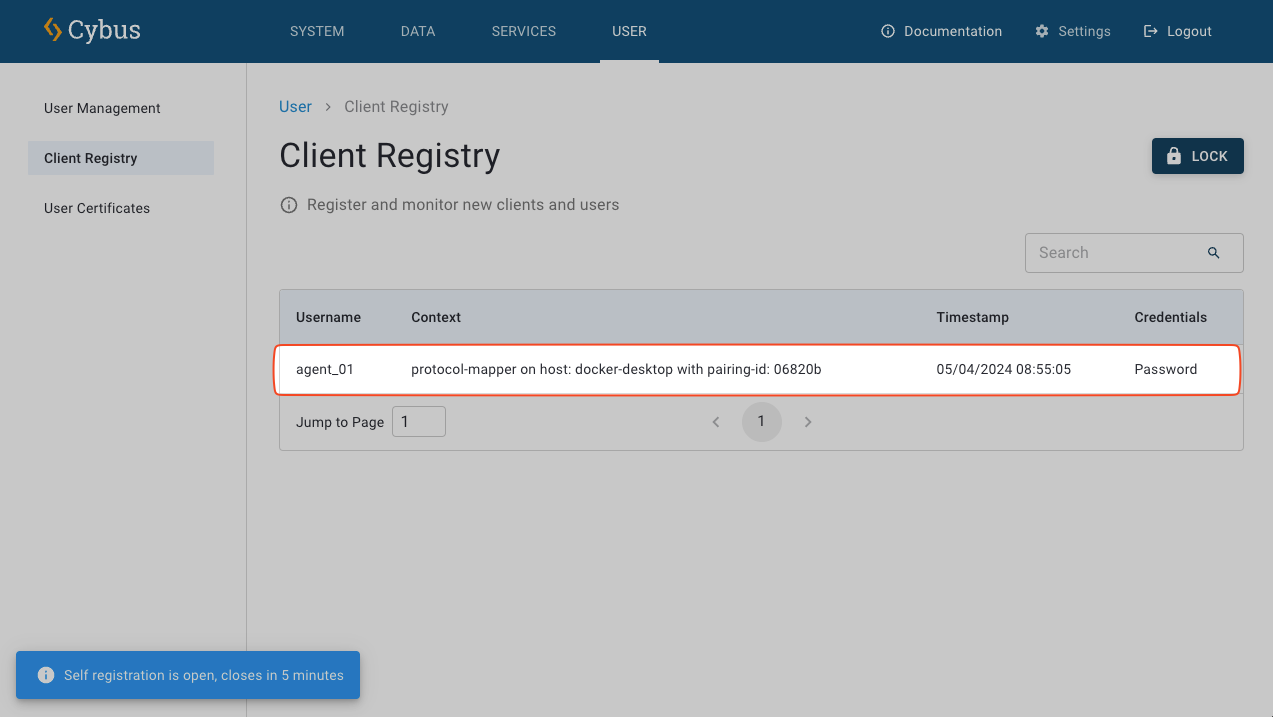

  1. The requesting client should appear in the table.

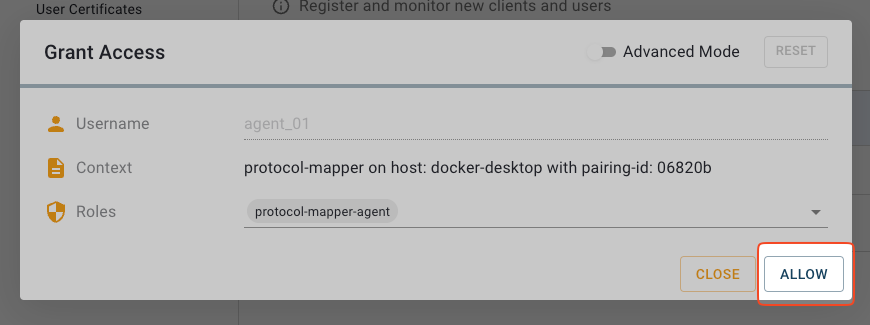

  1. Click on the table entry to inspect the client request, then click ALLOW to grant access

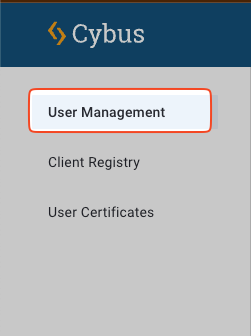

  1. On the navigation panel, click User.

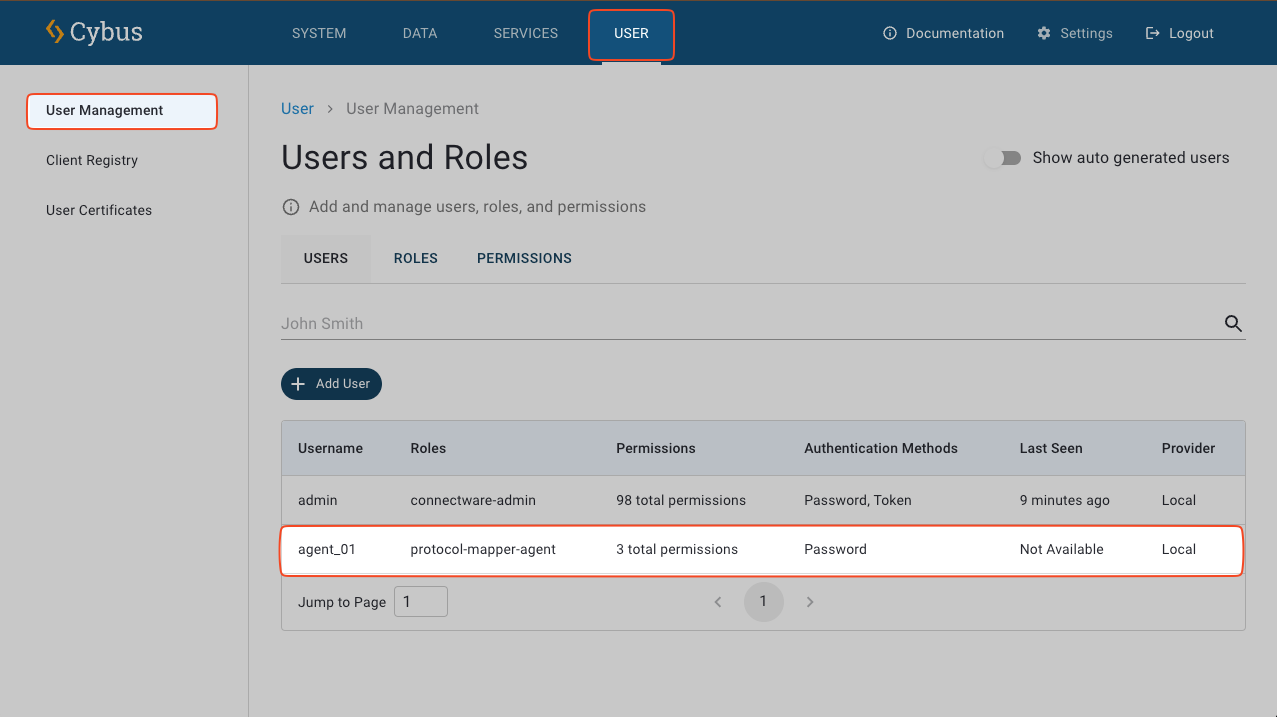

  1. The newly added user should appear in the Users table.

As a next step, click on the table row of the user, and assign one or more Roles according to the instructions here:

Roles
