Node-RED Workbench

A built-in Node-RED environment for rapidly prototyping data flows and integration solutions.

The Cybus Connectware Workbench is a built-in Node-RED environment designed for rapid prototyping and testing. This feature provides an accessible, visual programming interface for developing connectivity workflows without extensive coding.

Prototyping vs. Production Environment

The built-in Node-RED Workbench is designed for prototyping and testing purposes only. It is not recommended for production deployments.

For production environments, create a service commissioning file that installs Node-RED as a dedicated Cybus:Container resource. This approach provides full control over versioning, lifecycle management, and isolation of your Node-RED instance.

Accessing the Node-RED Workbench

To access the Node-RED Workbench:

  1. On the navigation panel, click Services.

  2. In the sidebar, click Node Red Workbench.

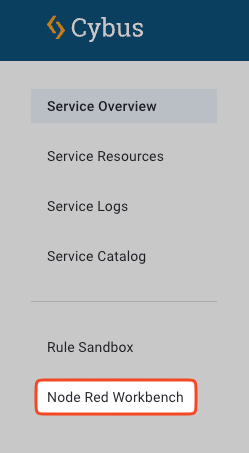

Menu navigation to access the Node-RED Workbench
Accessing the Node-RED Workbench through the sidebar menu
  1. The Node-RED editor will open in a new browser tab.

The default Workbench is intended for prototyping and testing only. For production environments, deploy Node-RED as a dedicated service using a service commissioning file.

Connecting Node-RED to the Connectware API

When creating flows that interact with the Connectware API:

Connection Parameters

  • Use connectware as the server name for both:

    • MQTT connections (port 1883)

    • HTTPS connections (port 443)

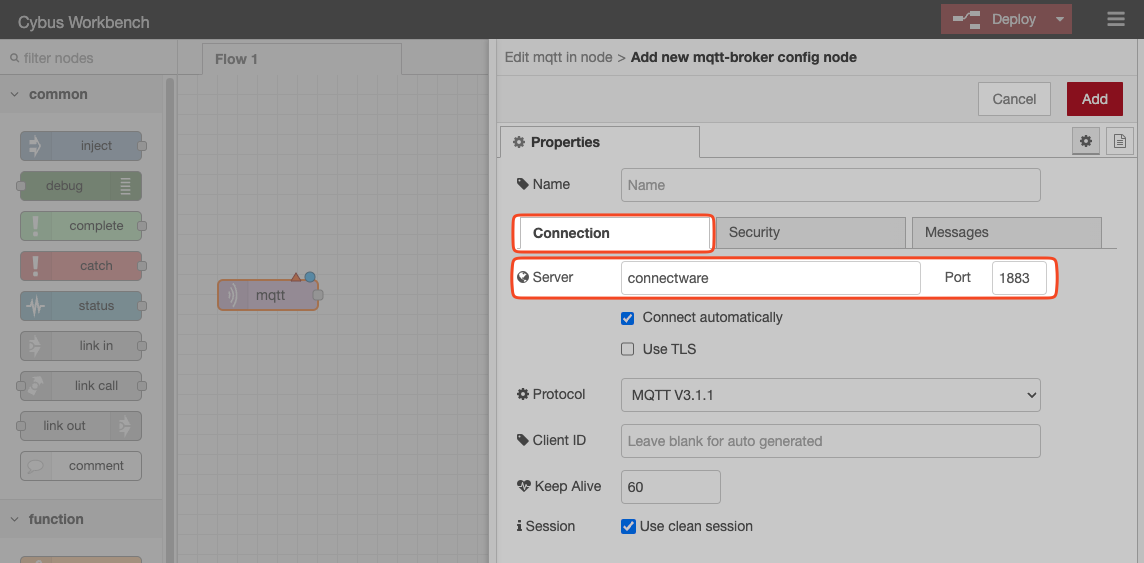

Node-RED MQTT connection configuration
Configuring MQTT connection to Connectware using the server name "connectware"

Authentication

When subscribing to or publishing on the Connectware server:

  1. Configure the appropriate username and password in your Node-RED nodes.

  2. Ensure the user account has sufficient permissions or roles to access the required topics.

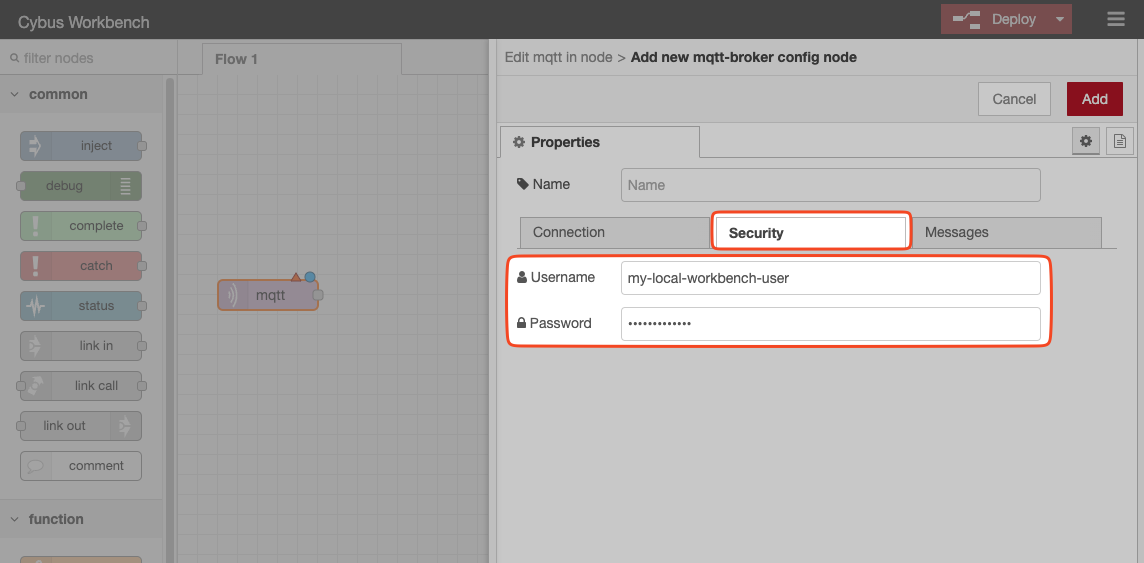

Node-RED authentication configuration
Setting up authentication credentials for Connectware access

For more information on managing user permissions, see User Management.

Working with Node-RED

For comprehensive guidance on using Node-RED, refer to the official Node-RED documentation.

Node-Red Workbench Projects

Node-RED Workbench supports Node-RED projects to integrate with Git repositories, allowing you to store and version your flows.

Node-RED Workbench projects are only available for Docker deployments and not for Kubernetes deployments.

Projects allow you to:

  • Store flows in external Git repositories

  • Implement version control for your flows

  • Collaborate with team members on flow development

  • Manage multiple flow projects within the same Workbench

For detailed information about this functionality, refer to the Node-RED Projects documentation.

Enabling Workbench Projects (Docker)

By default, Node-RED Workbench projects in Connectware are disabled. To enable Node-RED Workbench projects:

  1. Open the .env file.

  2. Set the CYBUS_WORKBENCH_PROJECTS_ENABLED variable to true.

# Workbench Configuration
CYBUS_WORKBENCH_PROJECTS_ENABLED=true
  1. Restart the Connectware instance for the changes to take effect. See Restarting Connectware.

Result: Once enabled, you will see additional project management options in your Node-RED interface.
